Data List Reference Table

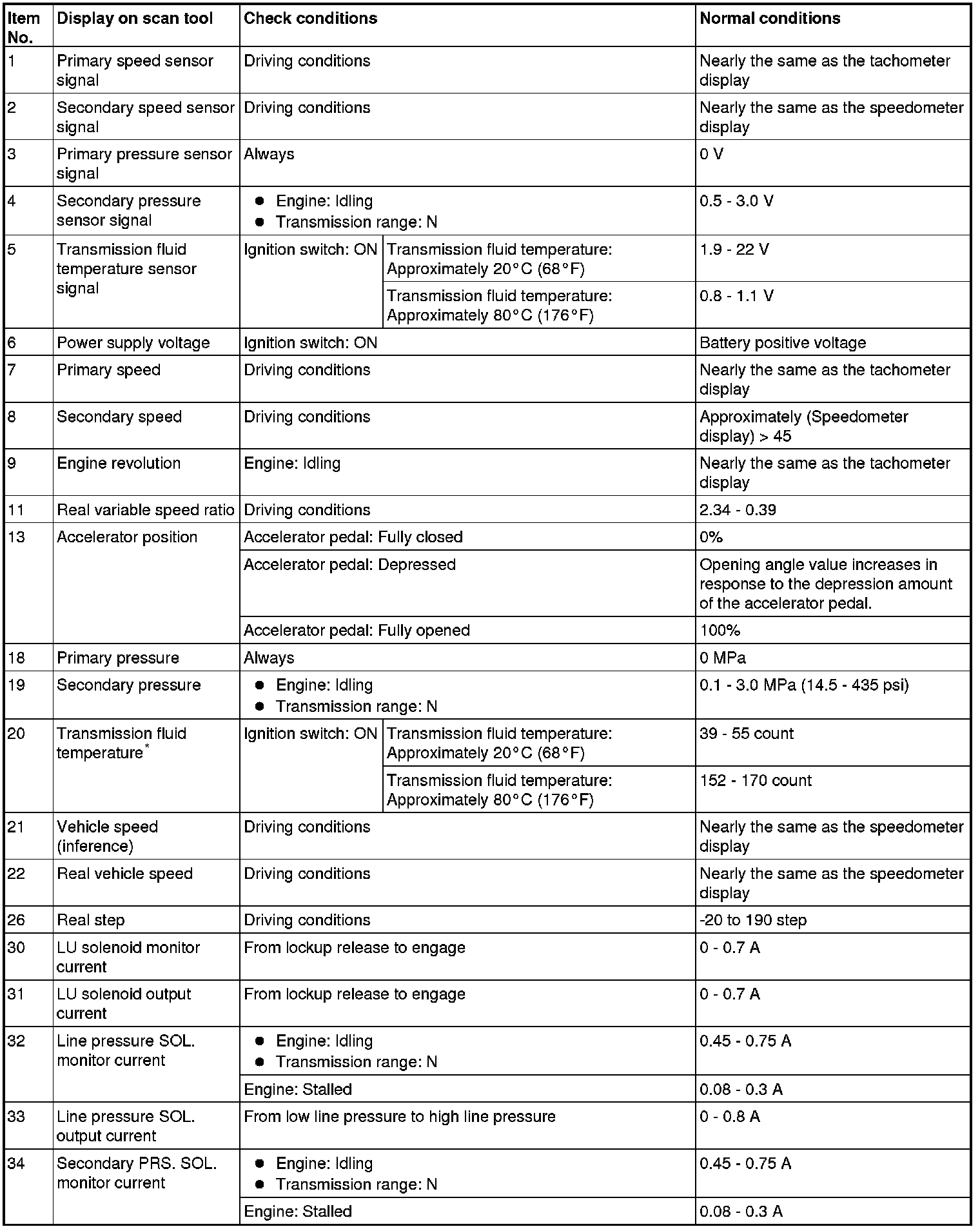

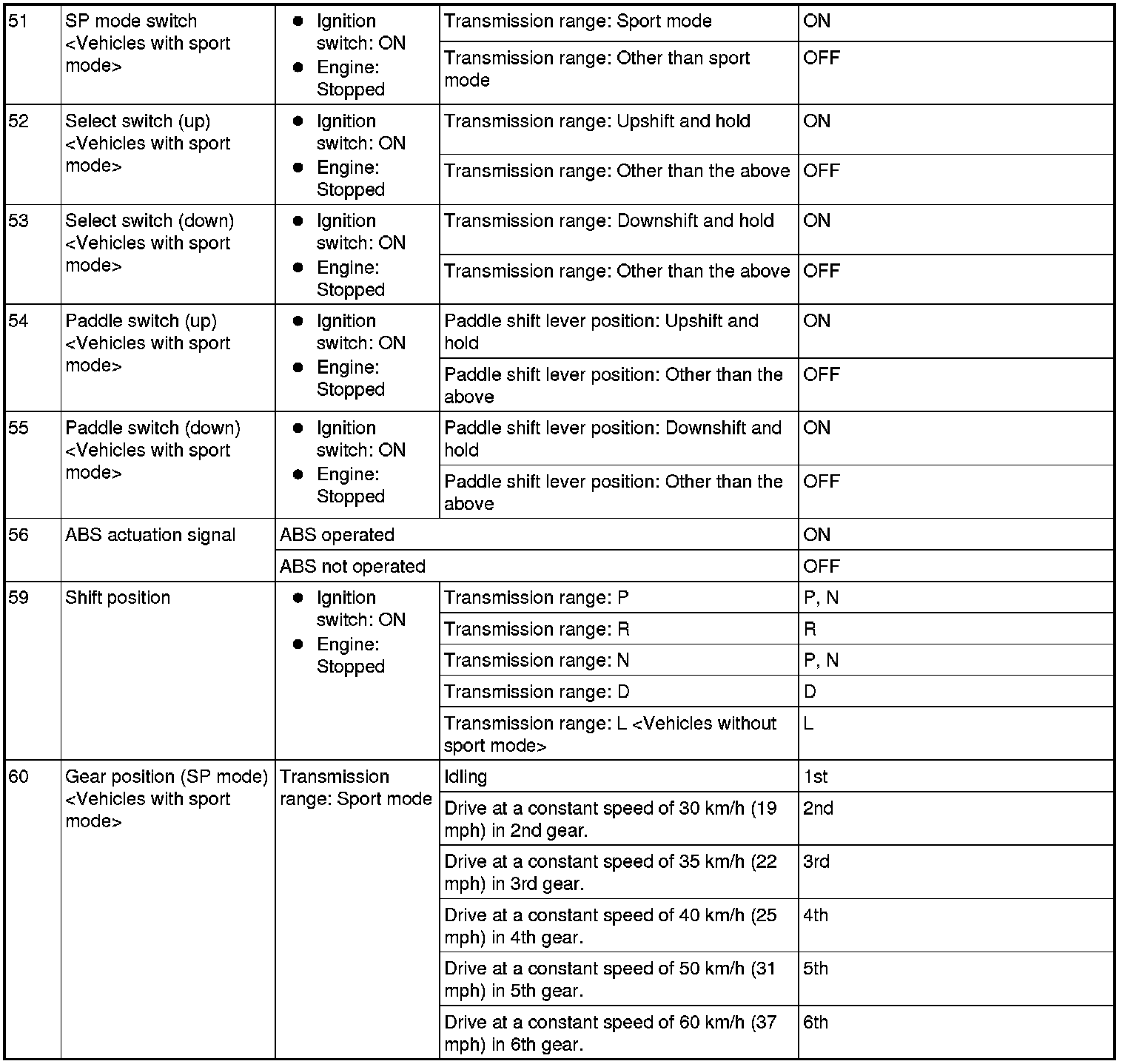

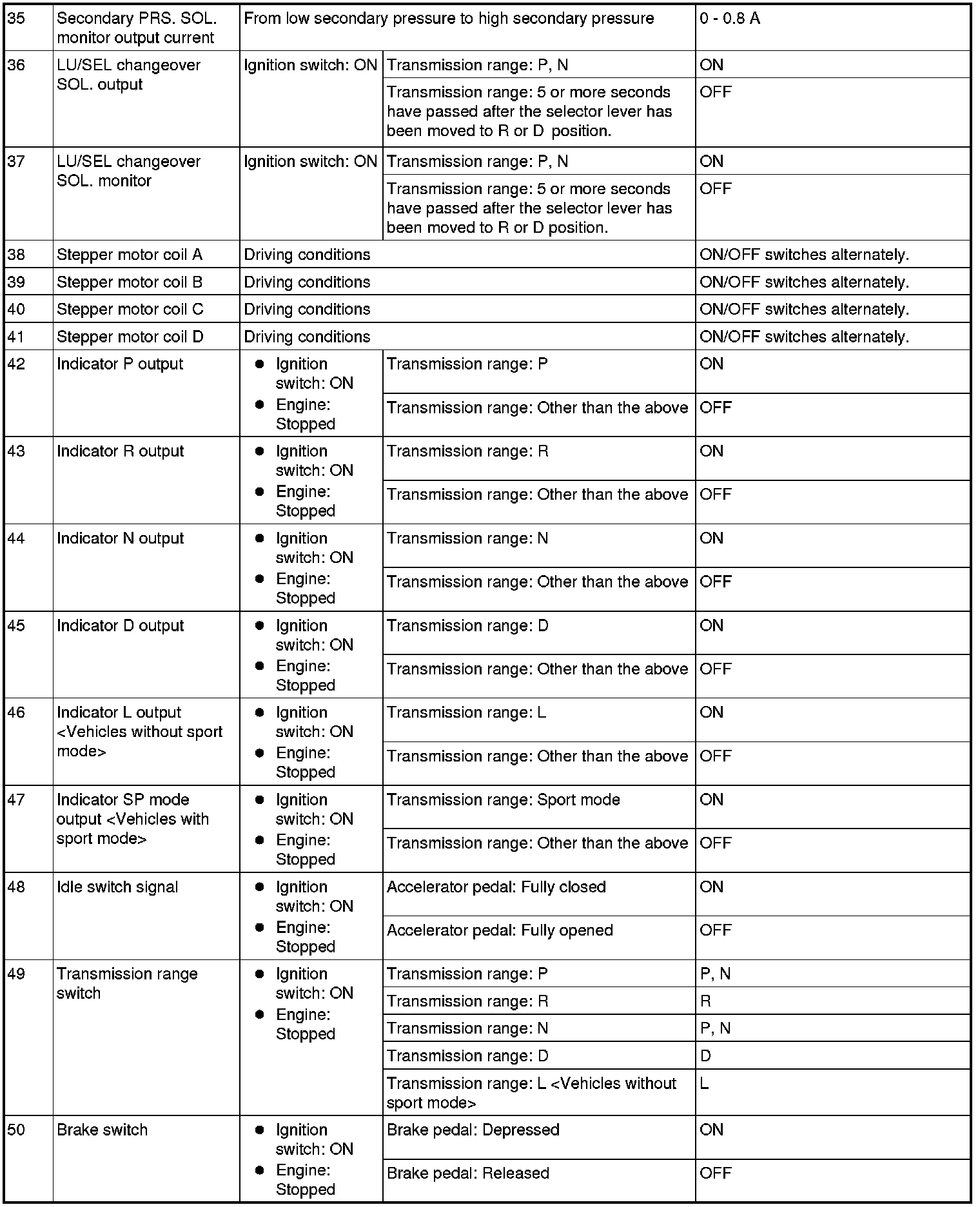

DATA LIST REFERENCE TABLE













NOTE:

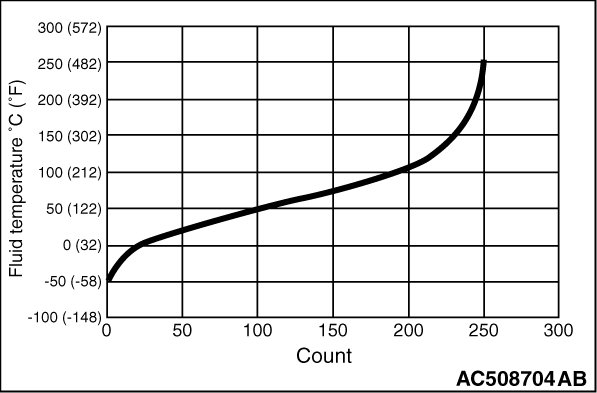

*: Relation between fluid temperature and COUNT is shown to the characteristics chart.
