Grounding

GROUNDING

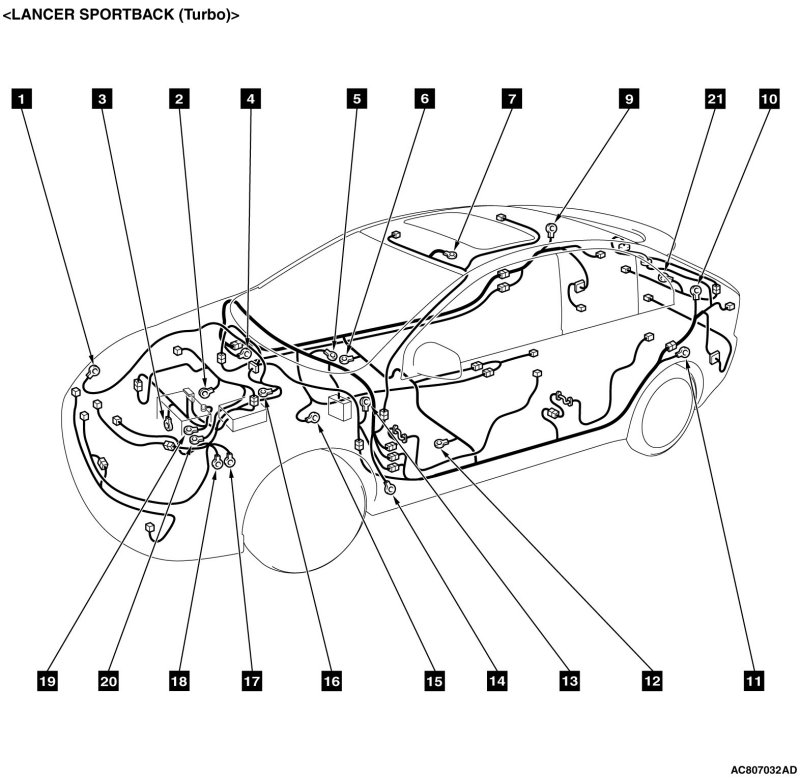

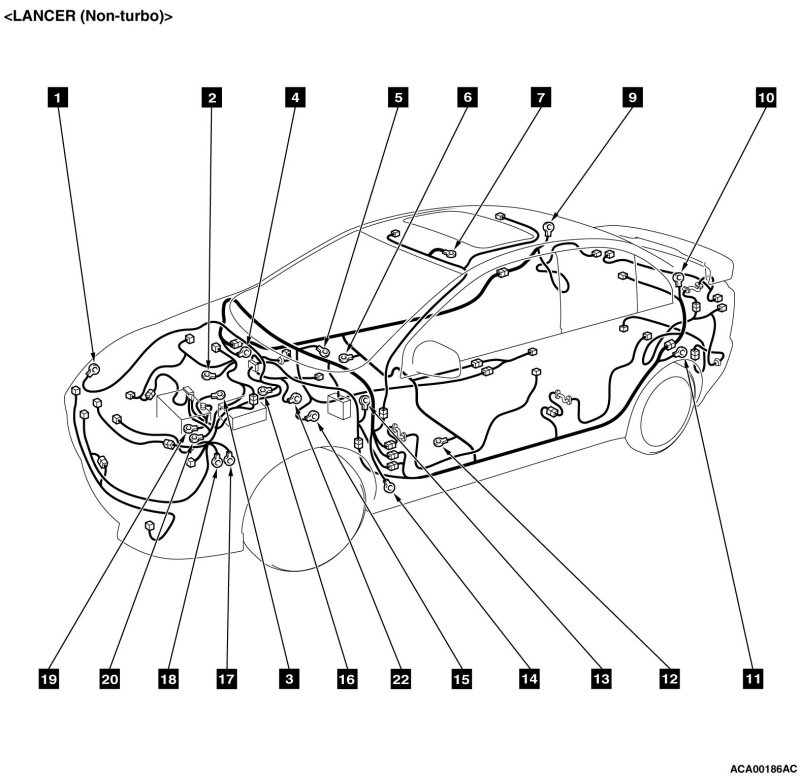

NOTE:

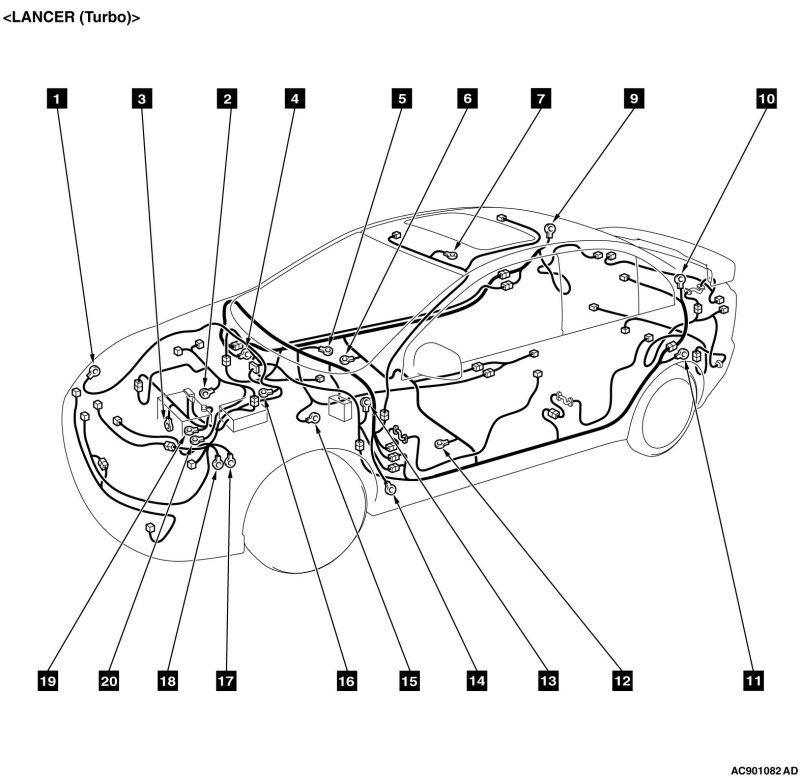

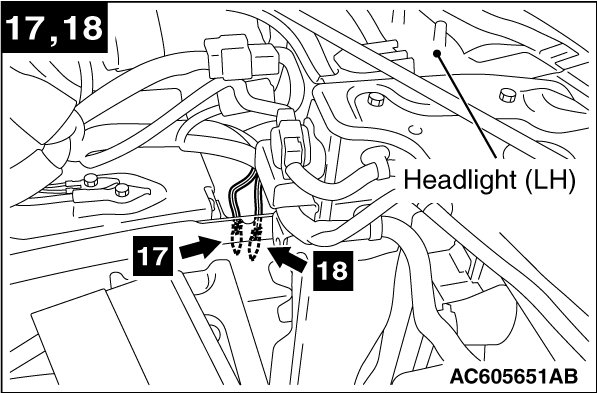

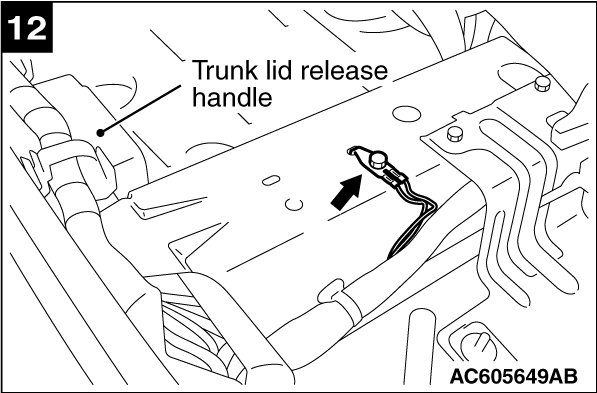

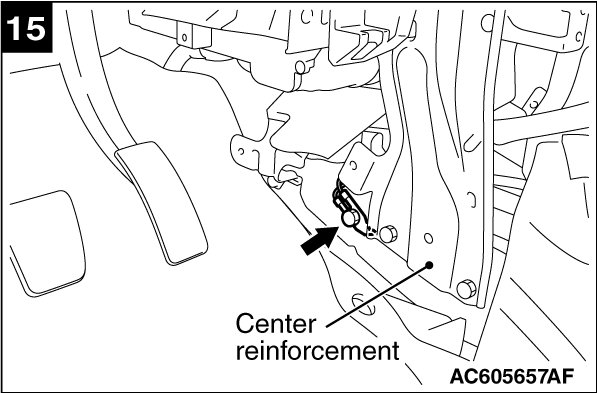

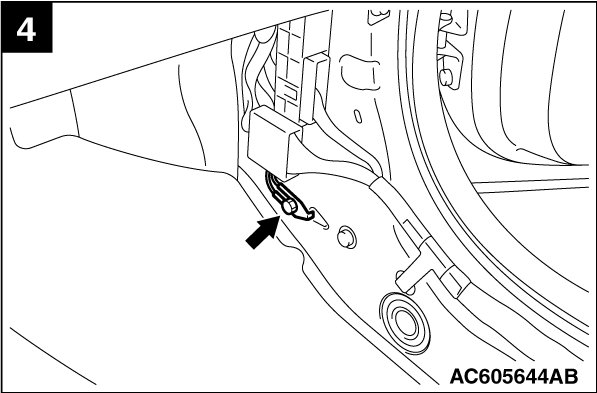

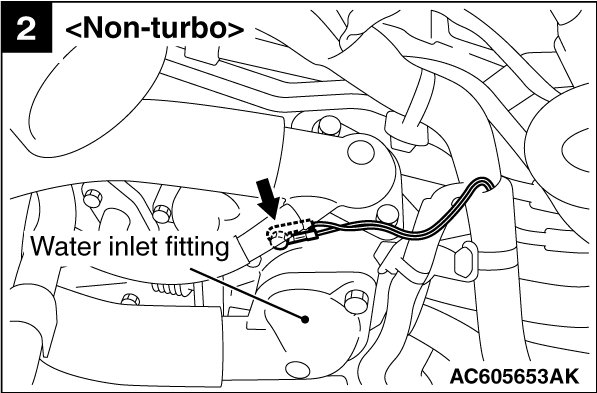

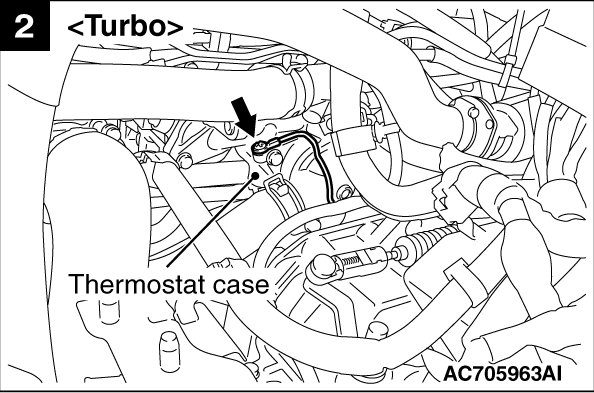

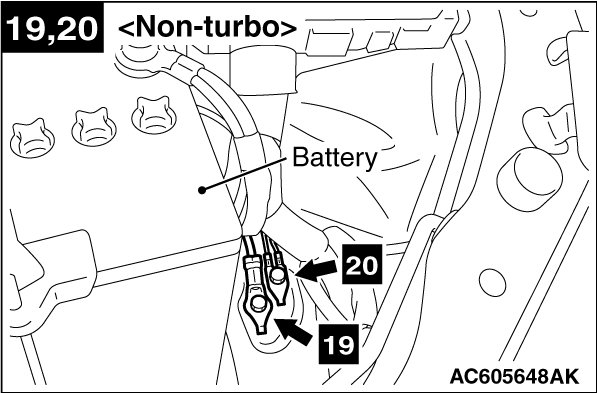

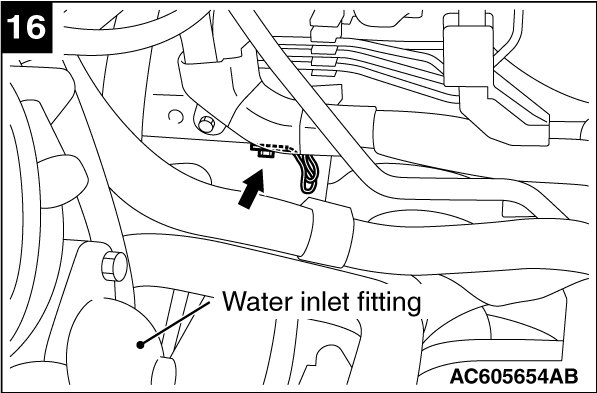

1 to 22 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.





NOTE:

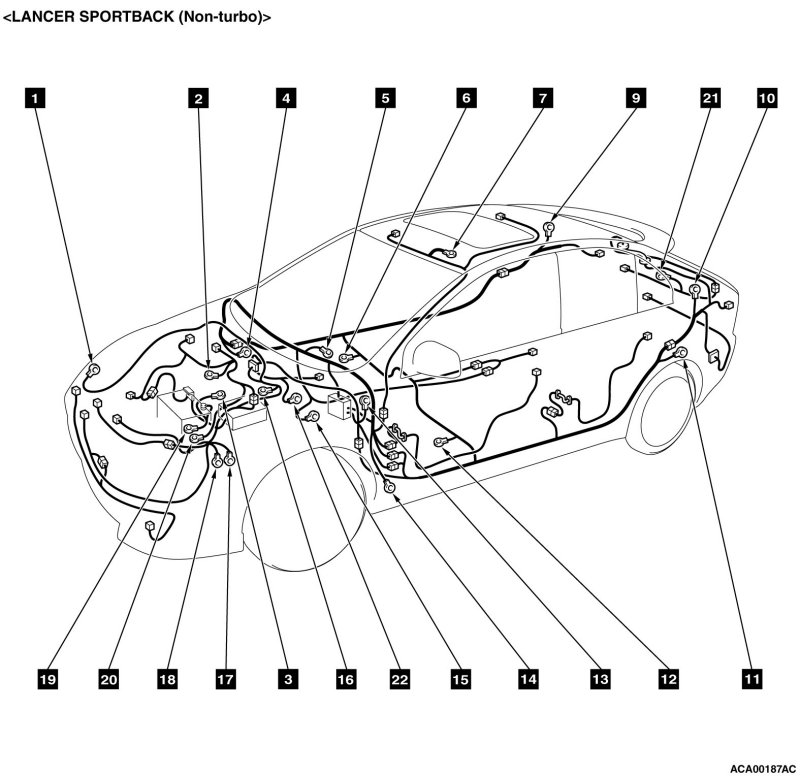

1 to 22 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.





NOTE:
1 to 20 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.





NOTE:
1 to 21 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.
