Powertrain Control Module Connector End View (B-19)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Powertrain Control Module Connector End View (B-19)

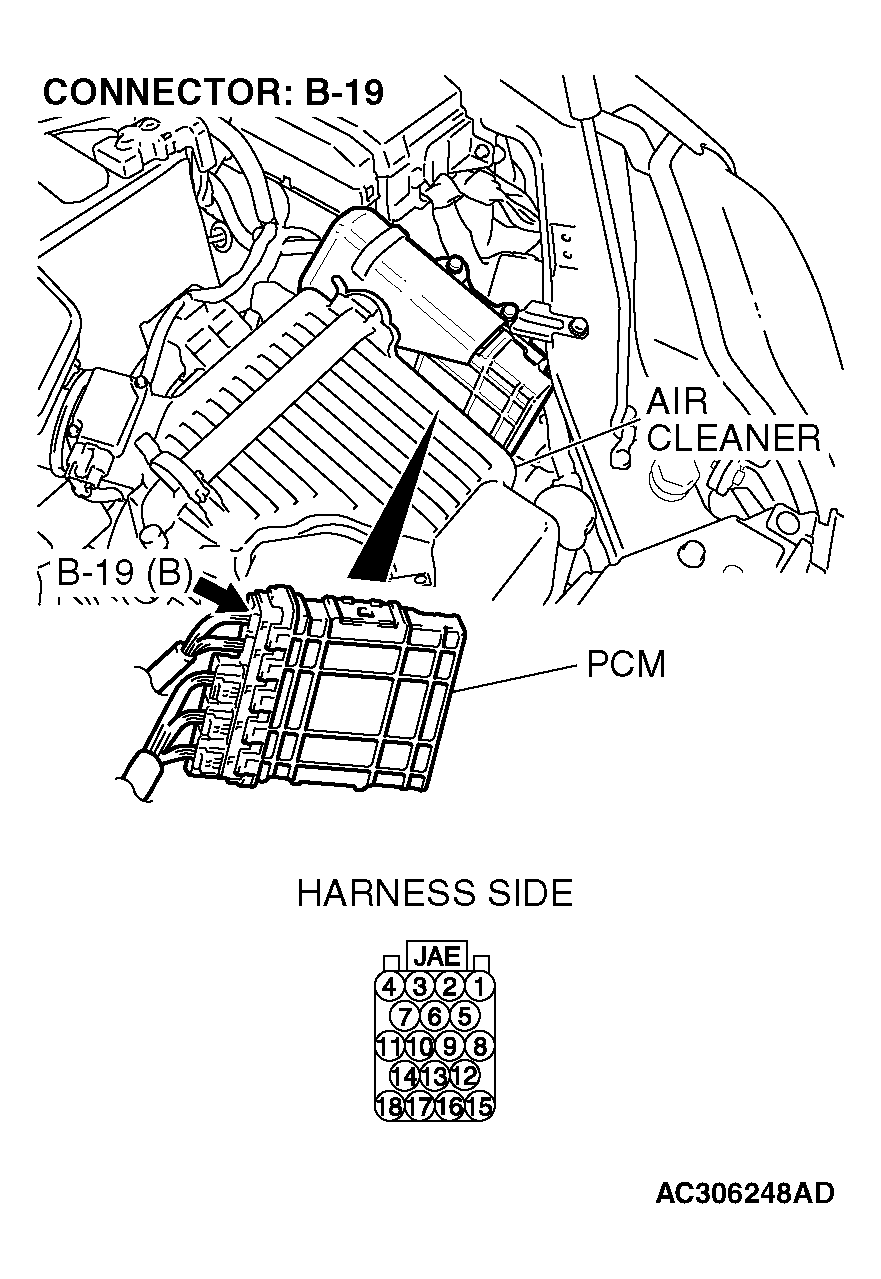

Fig 1: Powertrain Control Module Connector End View (B-19)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
