OEM Component Locations: Grounding

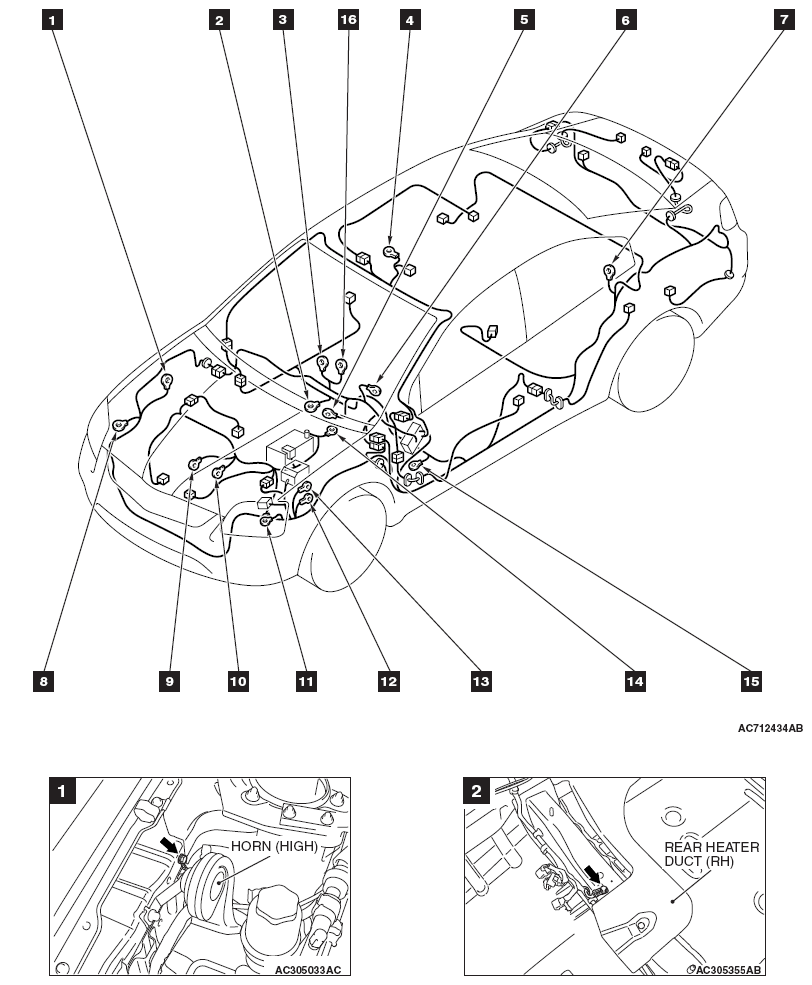

Fig 1: Locating Grounding Points (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
1 to 16 numbers correspond to the body ground point numbers in
CIRCUIT DIAGRAMS
.

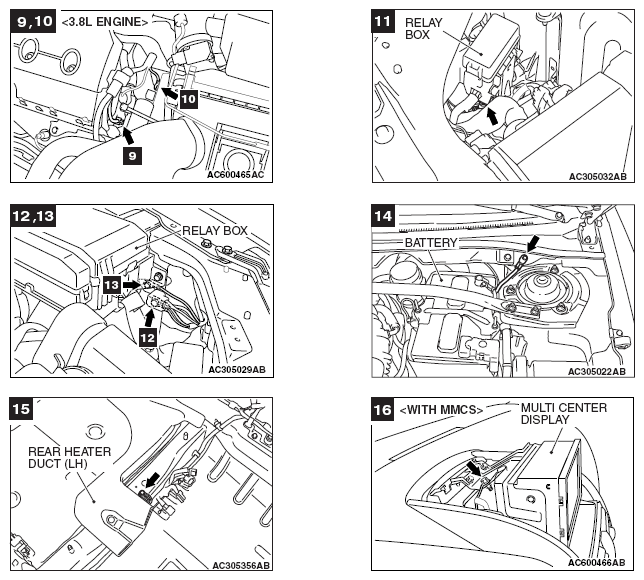

Fig 2: Locating Grounding Points (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

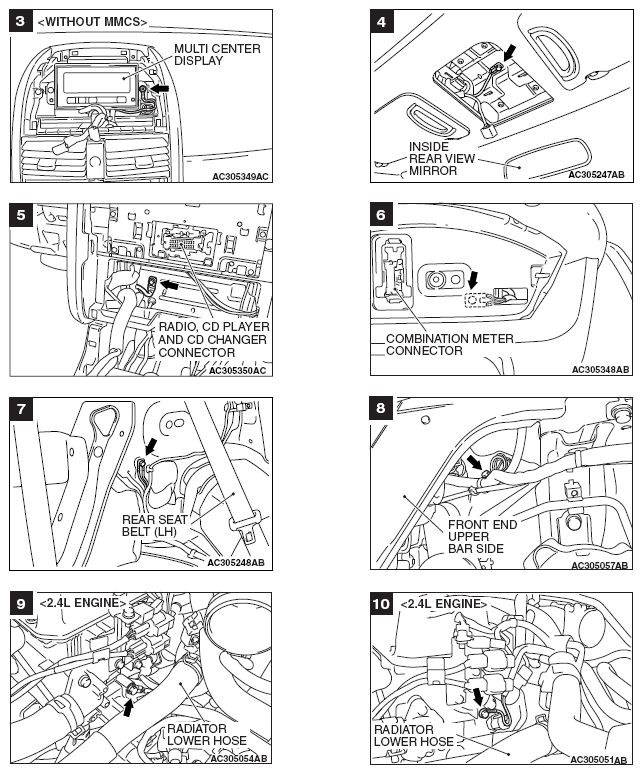

Fig 3: Locating Grounding Points (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
