INSPECTION PROCEDURE 3: TCL/ASC-ECU Power Supply Circuit System: Notes

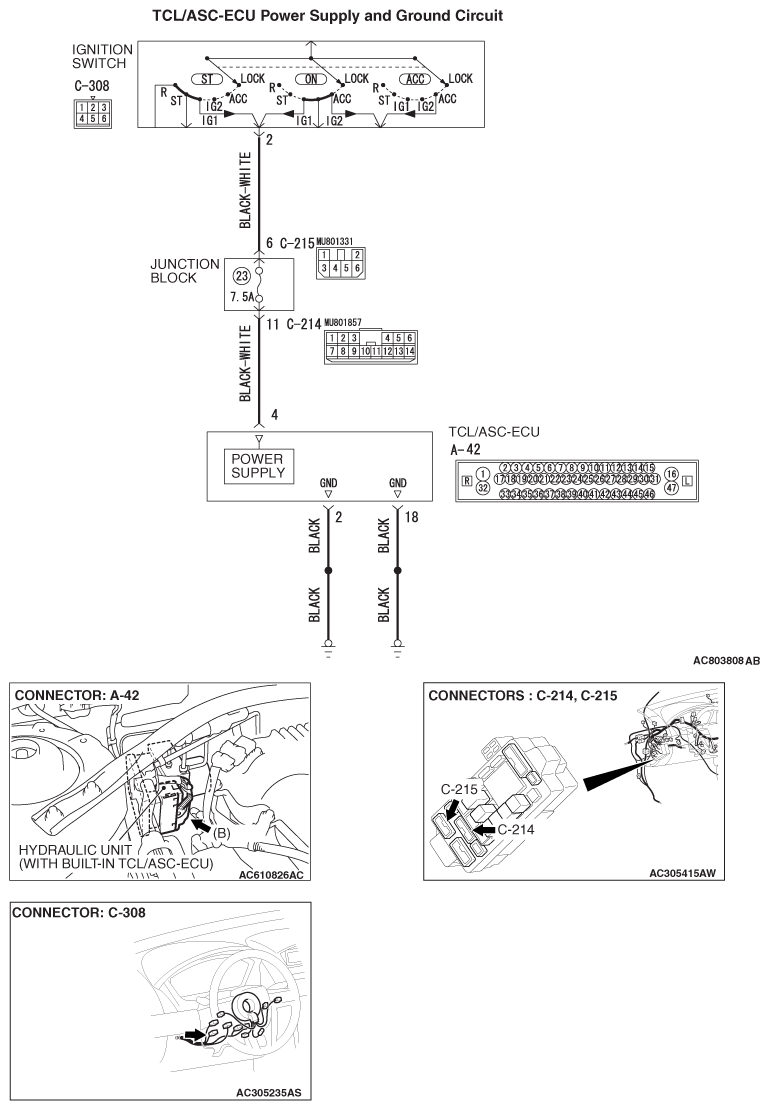

Fig 1: TCL/ASC-ECU Power Supply & Ground Circuit
G06710544Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
