Forgotten Key Prevention Function

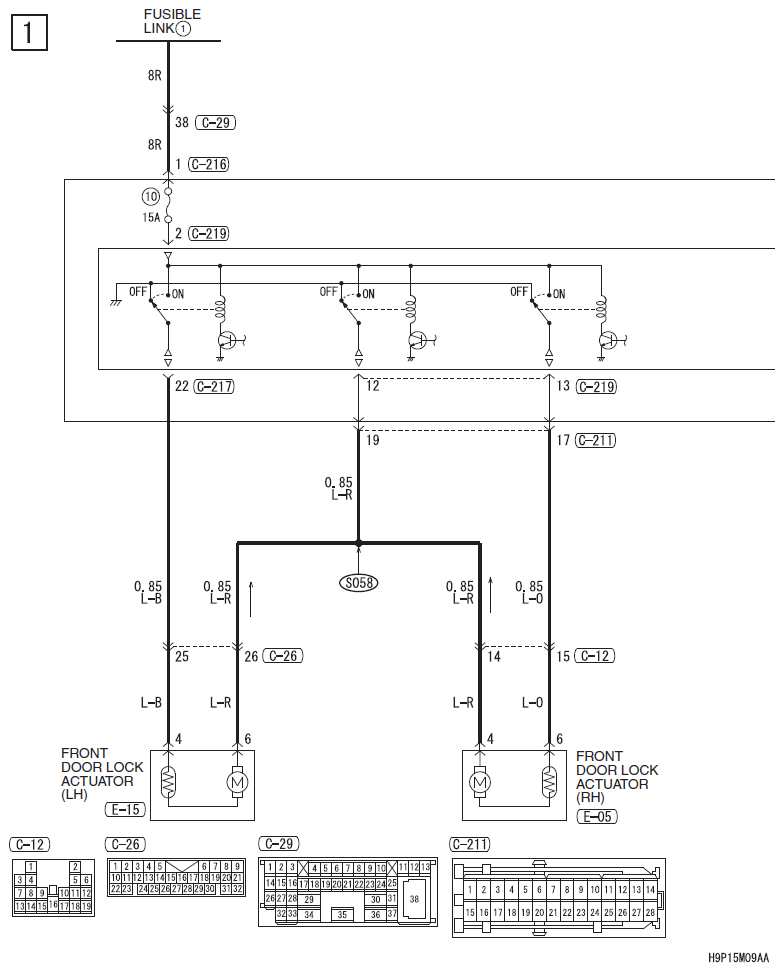

Fig 1: Forgotten Key Prevention Function (1 Of 4)

G07055086

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

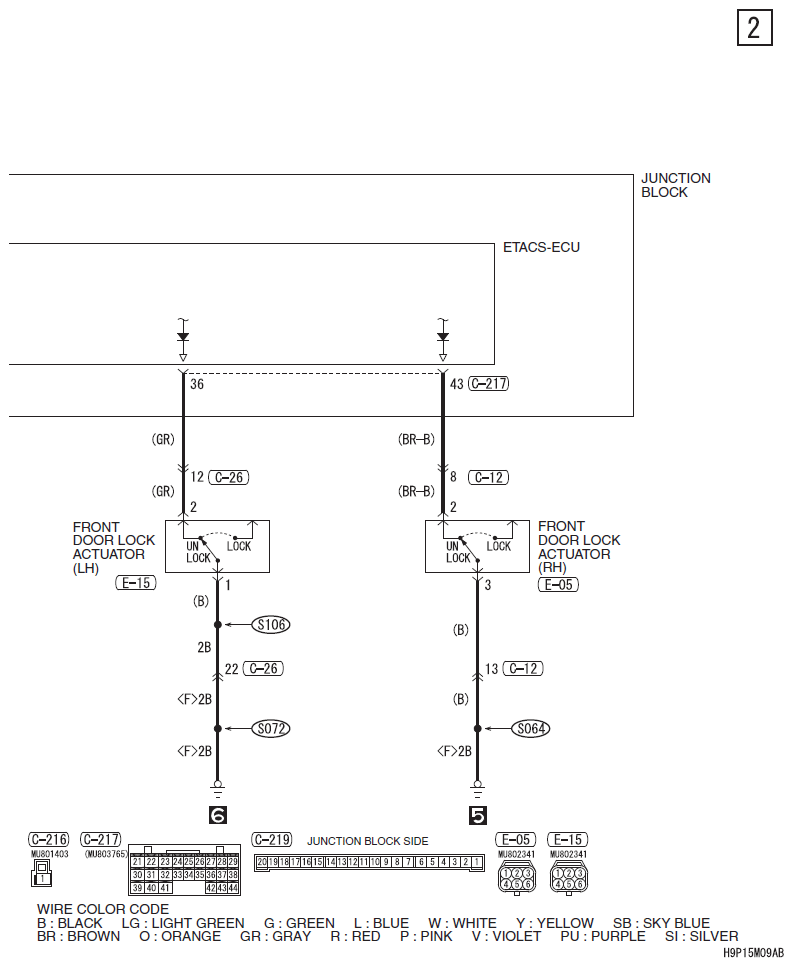

Fig 2: Forgotten Key Prevention Function (2 Of 4)

G07055087

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

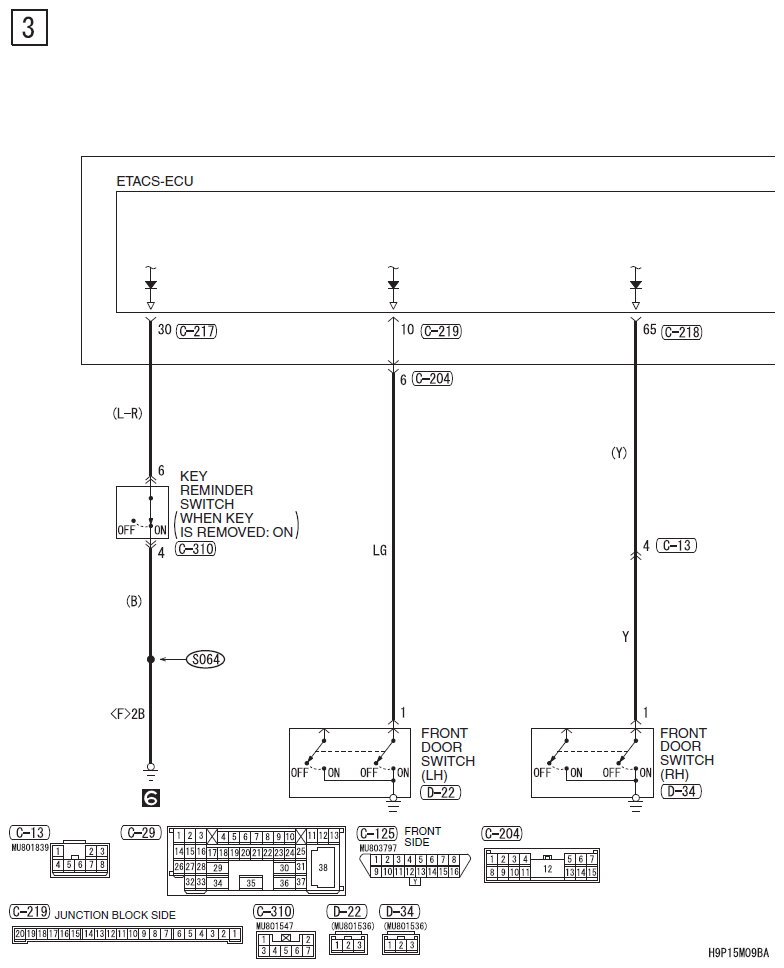

Fig 3: Forgotten Key Prevention Function (3 Of 4)

G07055088

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

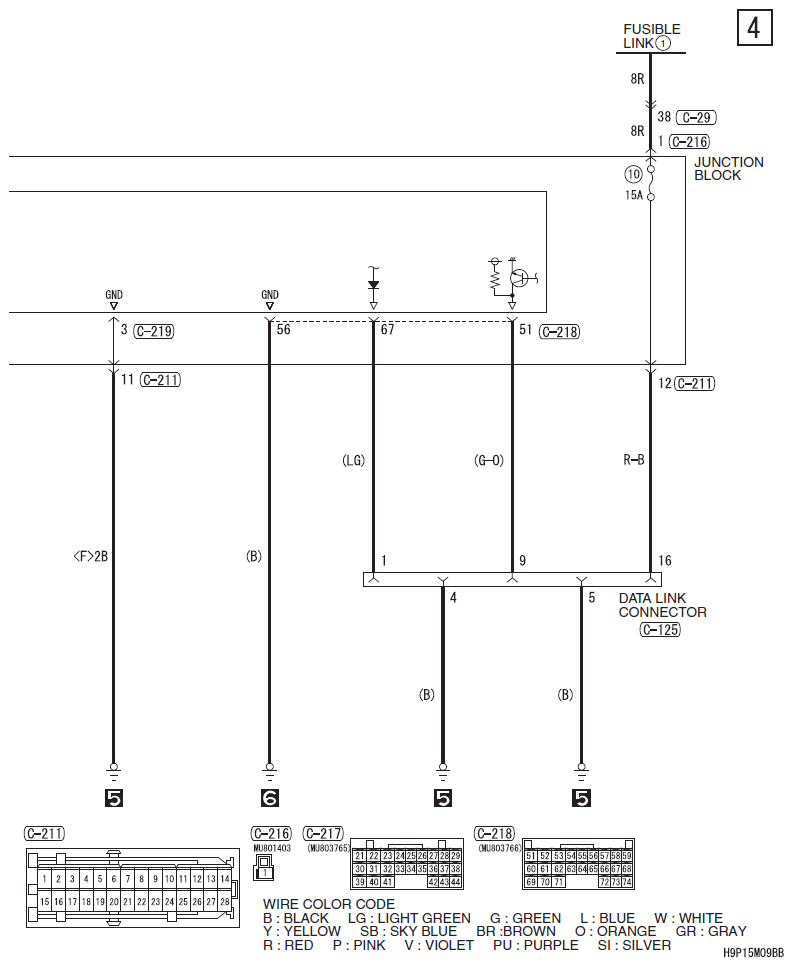

Fig 4: Forgotten Key Prevention Function (4 Of 4)

G07055089

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
