Removal And Installation <3.8L Engine>: Notes

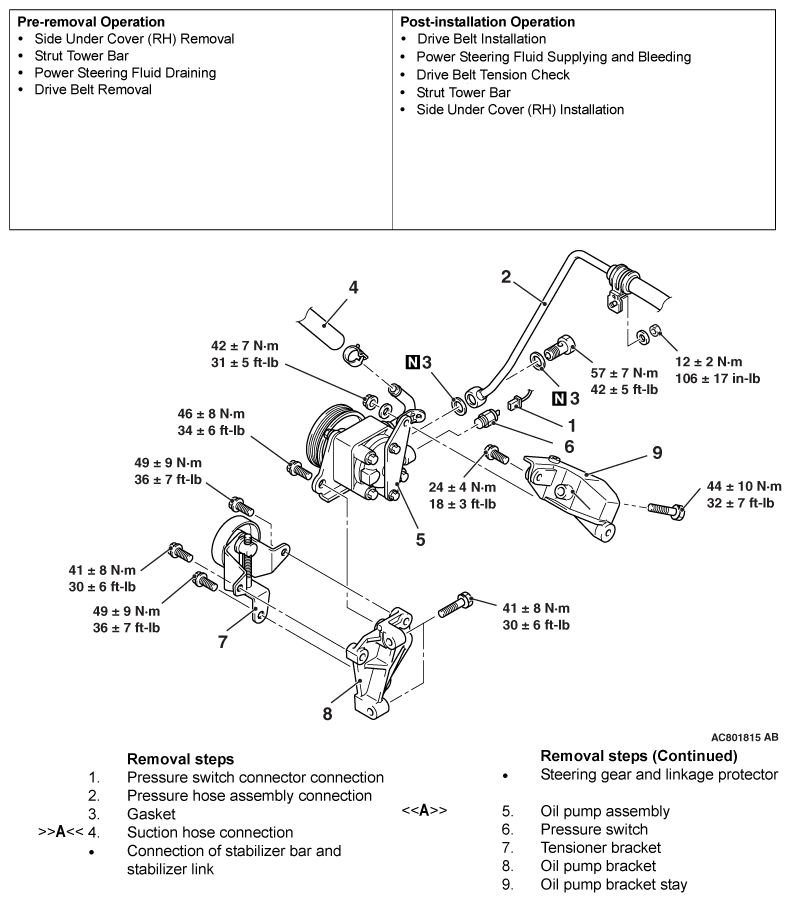

Fig 1: Power Steering Oil Pump Assembly Components With Torque Specification
G06686270Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
