Fan Control Relay Continuity Check

FAN CONTROL RELAY CONTINUITY CHECK

BATTERY VOLTAGE TERMINAL NO. TO BE CONNECTED TO TESTER CONTINUITY TEST RESULTS
Not applied 4 - 2 Open circuit
Connect terminal No. 3 and battery (-) terminal.
Connect terminal No. 1 and battery (+) terminal.		 4 - 2 Continuity (Less than 2 ohms)

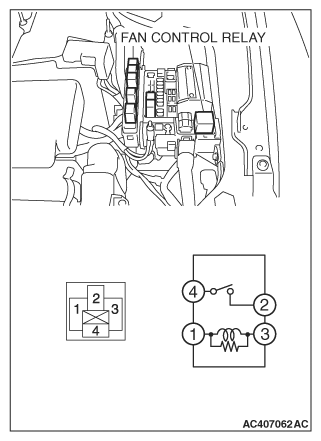

Fig 1: Identifying Fan Control Relay Terminals
G06684265Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
