Rear View Camera Image Is not Correctly Displayed: Notes
CAUTION:
Before replacing the rear view camera or inside rear view mirror assembly, ensure that the power supply circuit and the ground circuit are normal.

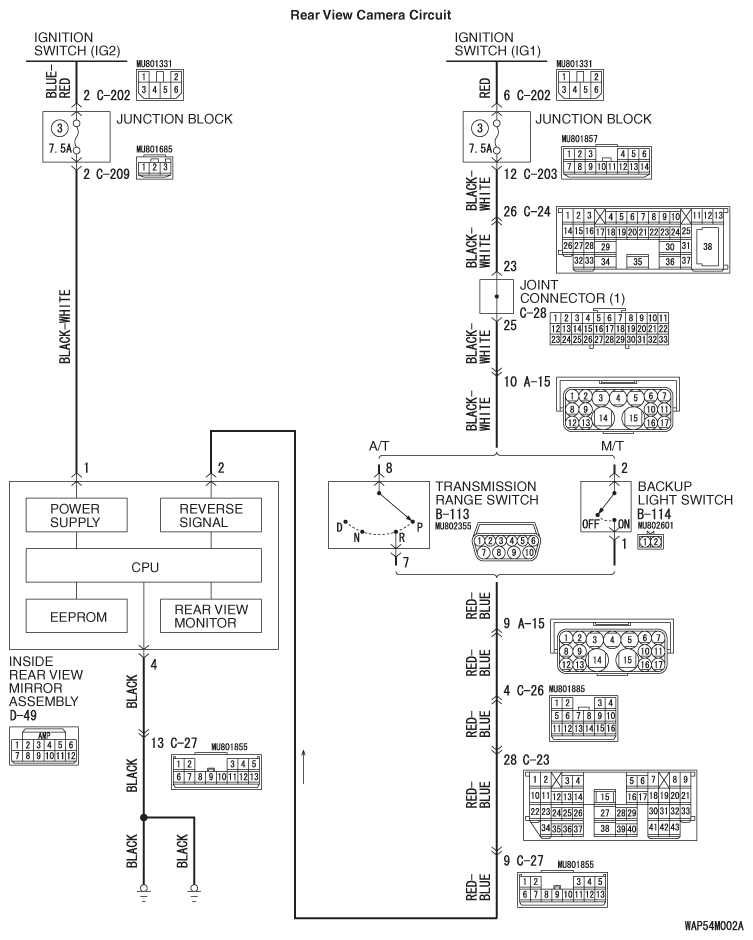

Fig 1: Rear View Camera Circuit
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

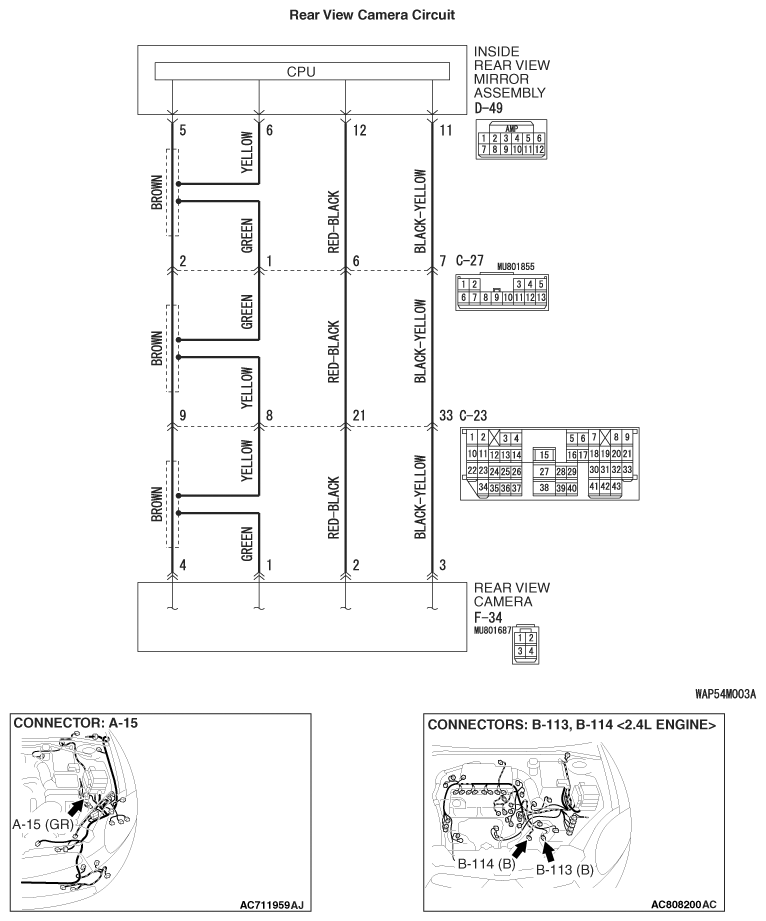

Fig 2: Rear View Camera Circuit
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

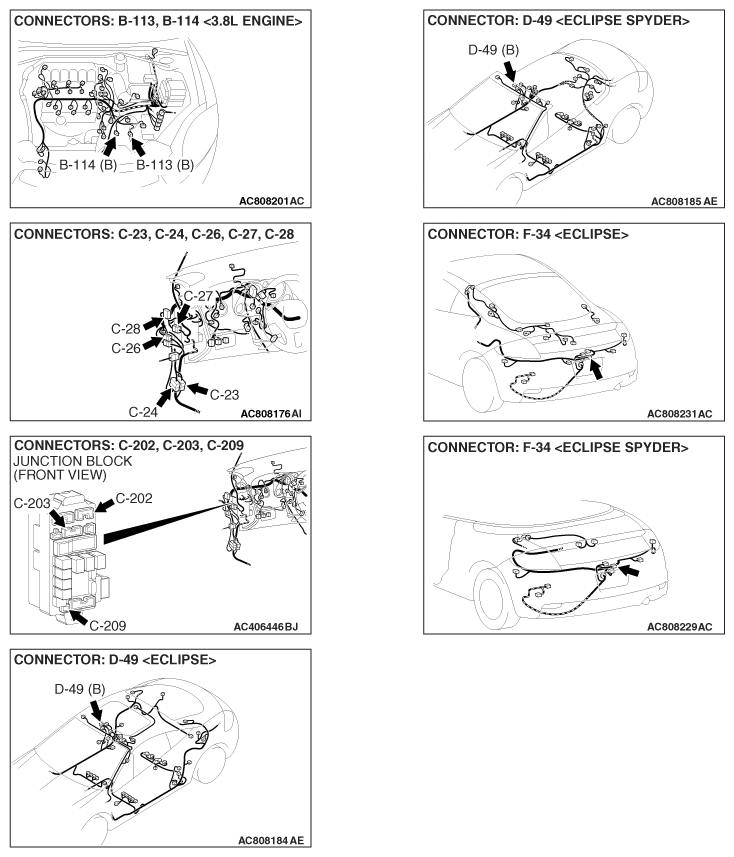

Fig 3: Identifying Connector A-15, B-113, B-114, F-34 And D-49
