Disassembly And Assembly: Notes

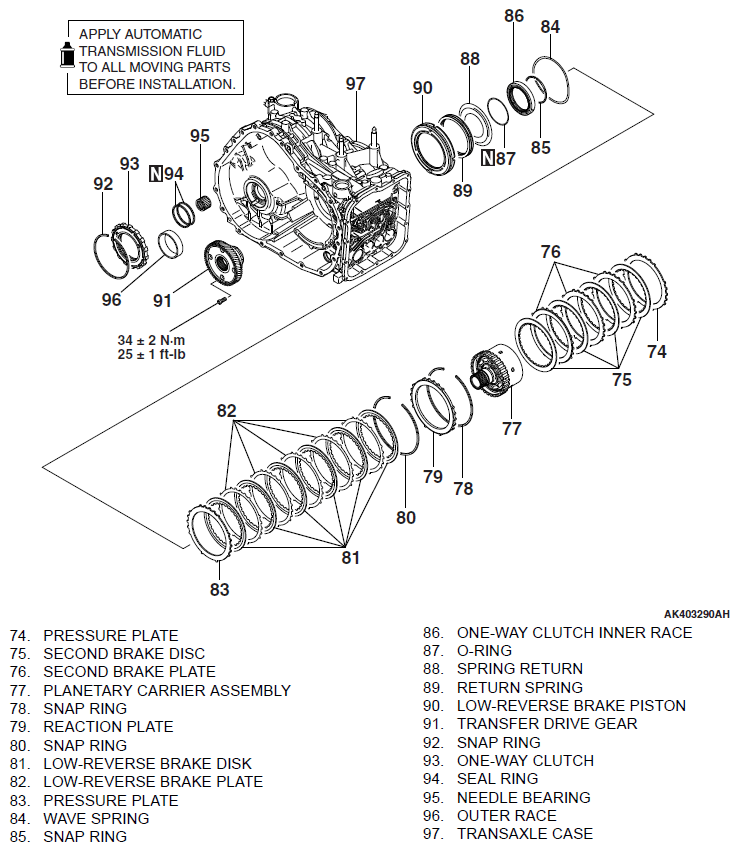

Fig 1: Transaxle Components With Torque Specification (1 Of 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

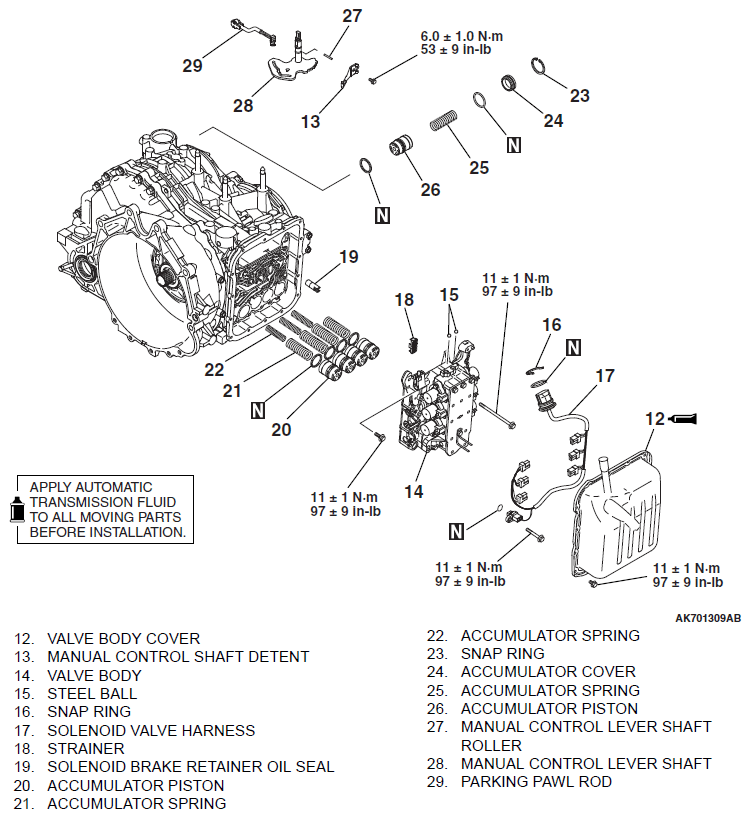

Fig 2: Transaxle Components With Torque Specification (2 Of 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

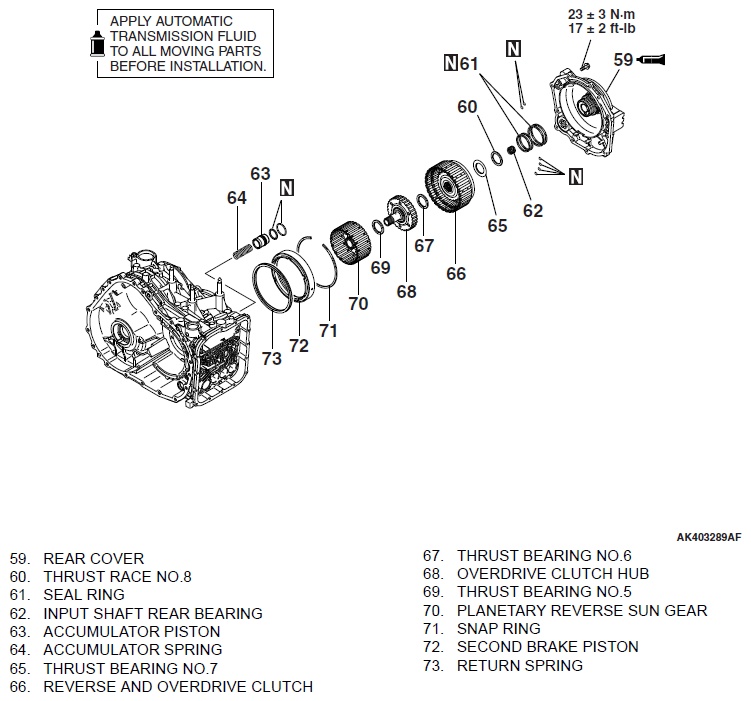

Fig 3: Transaxle Components With Torque Specification (3 Of 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

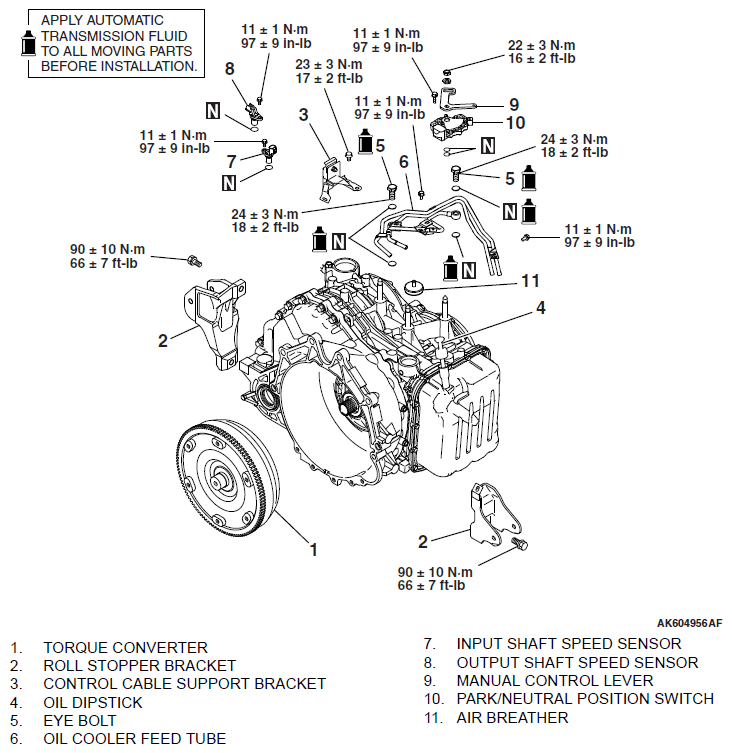

Fig 4: Transaxle Components With Torque Specification (4 Of 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

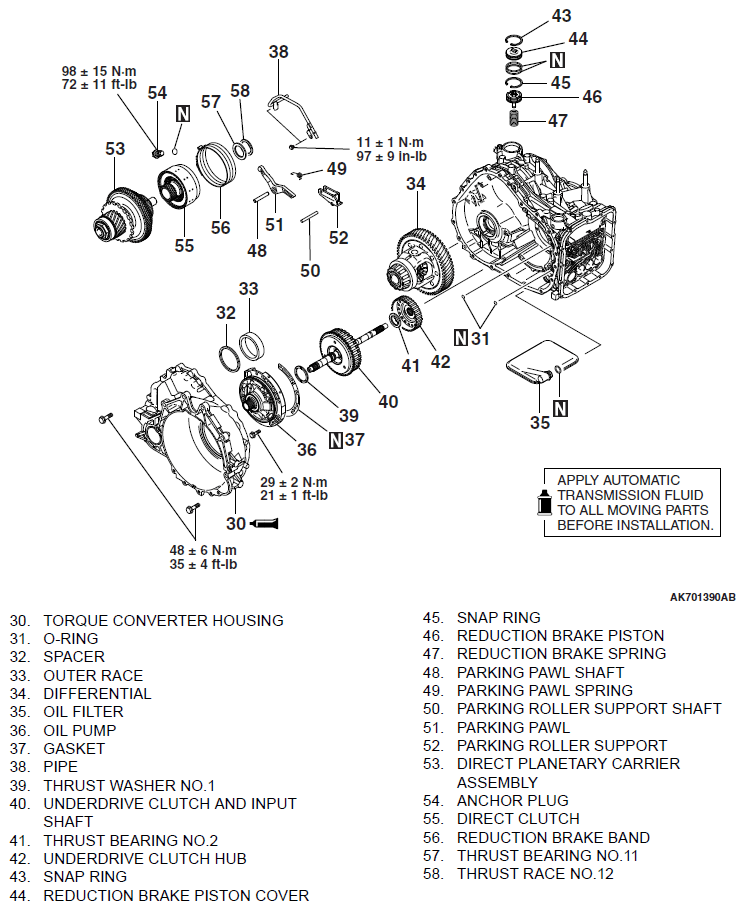

Fig 5: Transaxle Components With Torque Specification (5 Of 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MD998333: Oil Pump Remover
• MD999577: Spring Compressor
• MD998924: Spring Compressor Retainer
• MD998412: Guide
• MB991632: Clearance Dummy Plate
• MD998913: Dial Gauge Extension
• MB990938: Handle
• MB991633: Reduction brake wrench set
• MB990936: Installer Adapter
• MB991445: Bushing remover and installer base
