Disassembly And Assembly: Notes

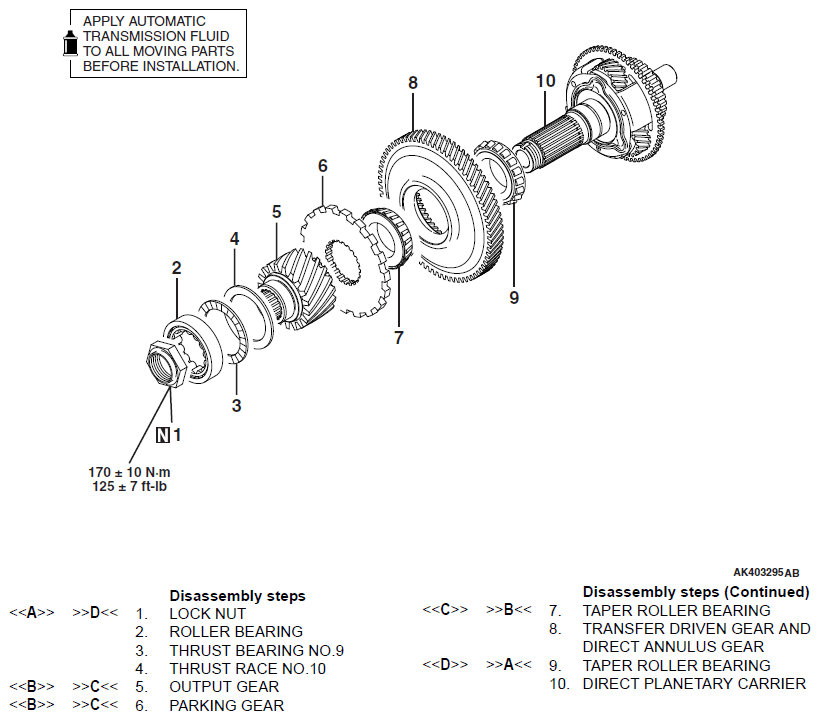

Fig 1: Disassembling View Of Direct Planetary Carrier With Torque Specifications
G06686043Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
