Disassembly And Assembly: Notes

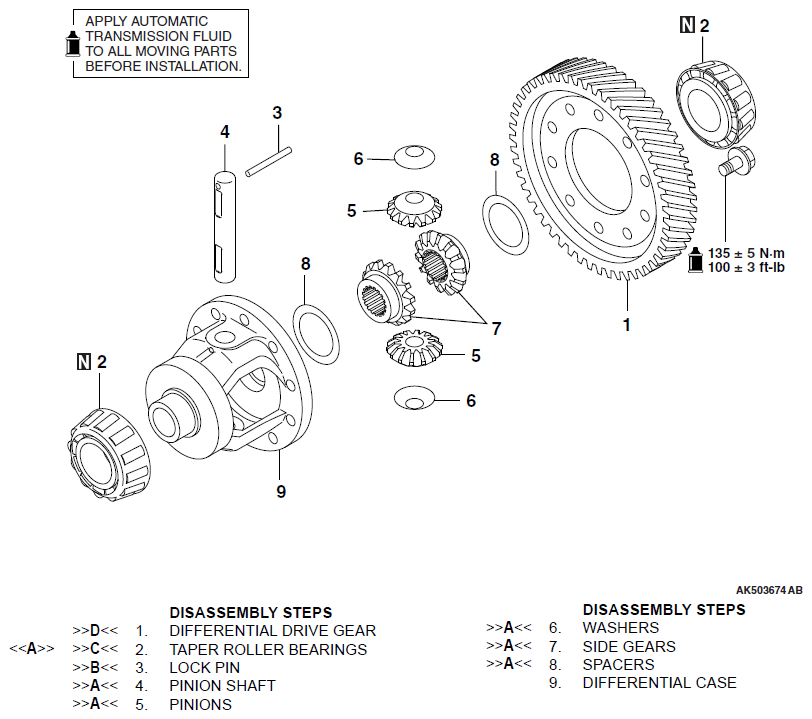

Fig 1: Exploded View Of Differential With Torque Specifications
G06686054Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
