Vacuum Hose Routing
>>
<2.4L Engine>
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
<2.4L Engine>

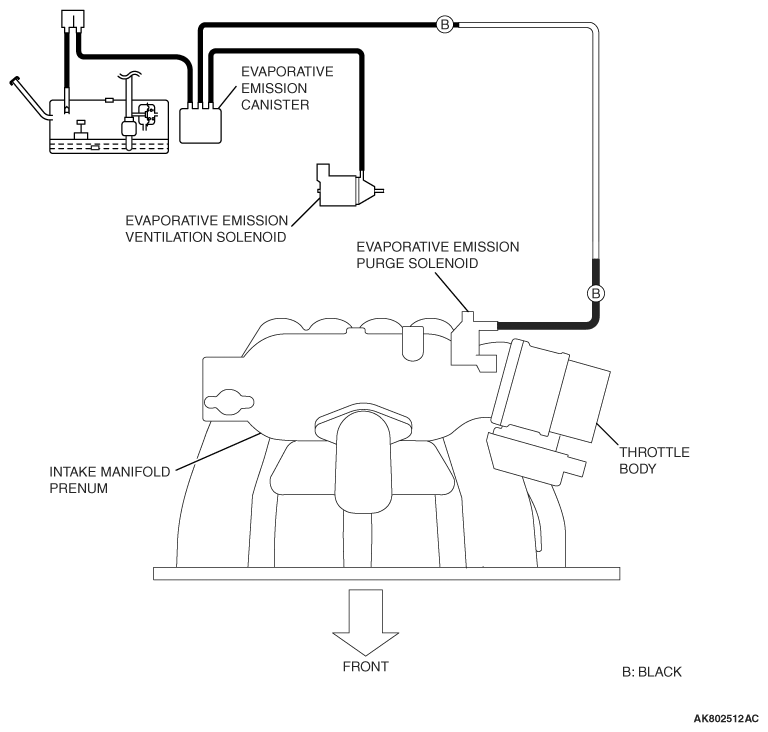

Fig 1: Vacuum Hose Routing - 2.4L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
