Removal And Installation: Notes

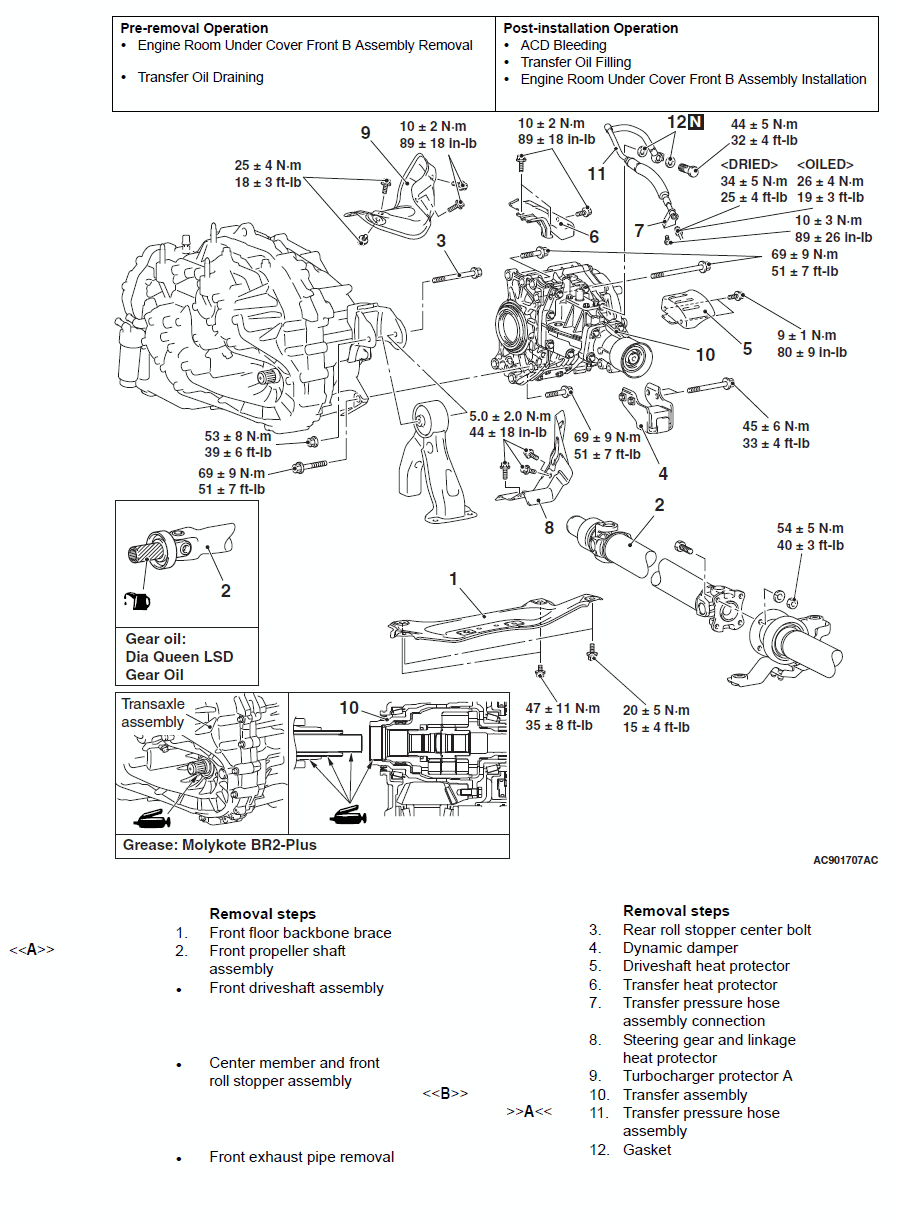

Fig 1: Exploded View Of Transfer Assembly With Torque Specifications
G06677261Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
