Removal And Installation

WARNING: For removal and installation of the passenger's side air bag module, always observe the service procedures described in DRIVER'S AIR BAG MODULE AND CLOCK SPRING < EXCEPT RALLIART > and DRIVER'S AIR BAG MODULE AND CLOCK SPRING < RALLIART > .

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustration in the "REMOVAL AND INSTALLATION" and "DISASSEMBLY AND ASSEMBLY" procedures in this service information.

BOLTS AND SCREWS SYMBOL CHART

Name	Symbol	Size (D x L) mm	Color	Shape
Tapping screw	a	5 x 12	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
	b	5 x 16	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
	c	5 x 12	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Bolt with washer	d	5 x 20	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Bolt with washer	e	6 x 16	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
D: Thread diameter, L: Effective thread length

CAUTION:

Refer to SERVICE PRECAUTIONS and PASSENGER'S (FRONT) AIR BAG MODULE before removing the passenger side air bag module.
Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.

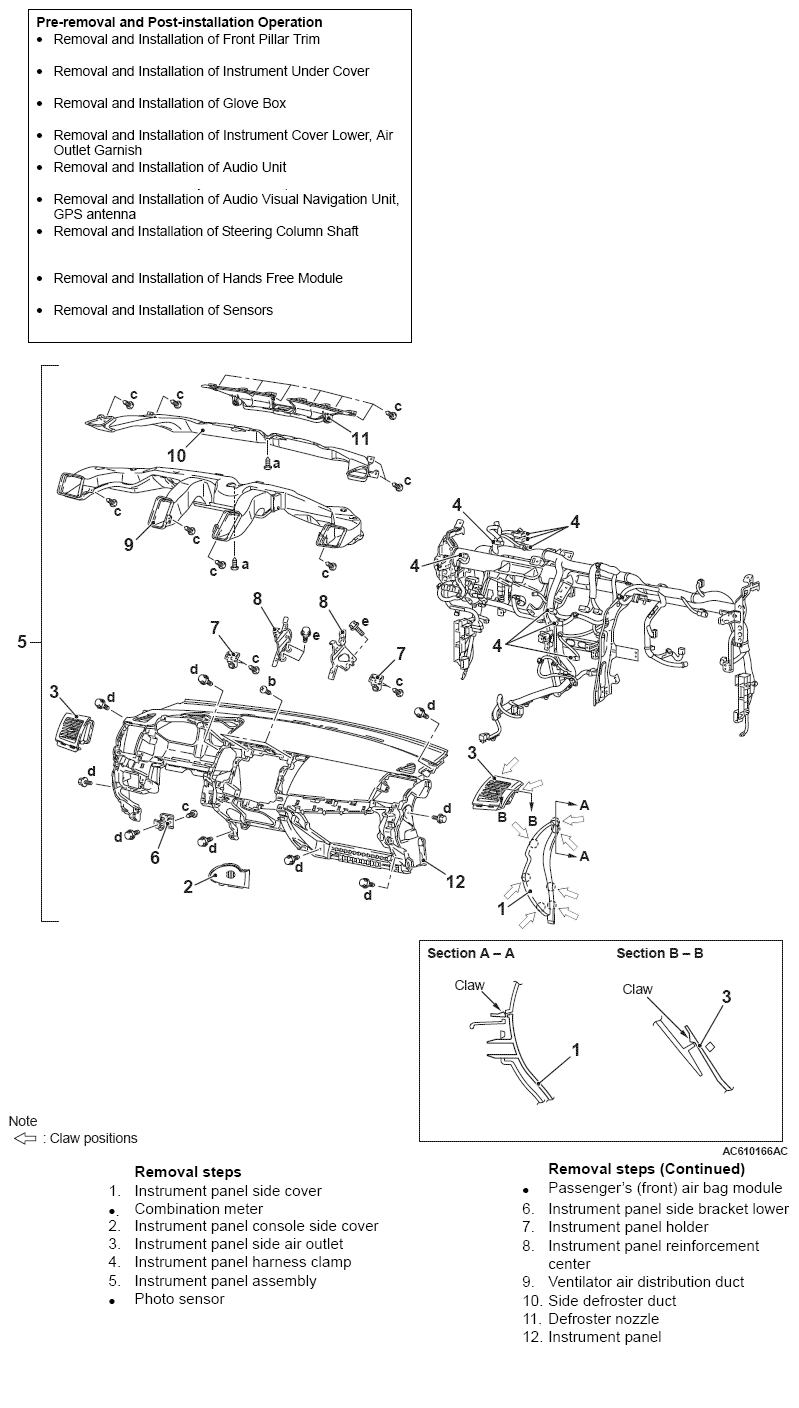

Fig 1: Exploded View Of Instrument Panel Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
