>>B << Cylinder Sub-Assembly Assembly

Apply the supplied grease to body surfaces of the cylinder opposite of the tumblers, in the keyway of the cylinder plug head and actuator pocket, and the inside diameter of the case.

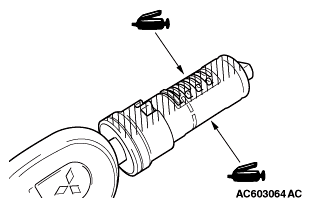

Fig 1: Applying Grease To Body Surfaces Of Cylinder
G06247886Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
