Removal And Installation: Notes

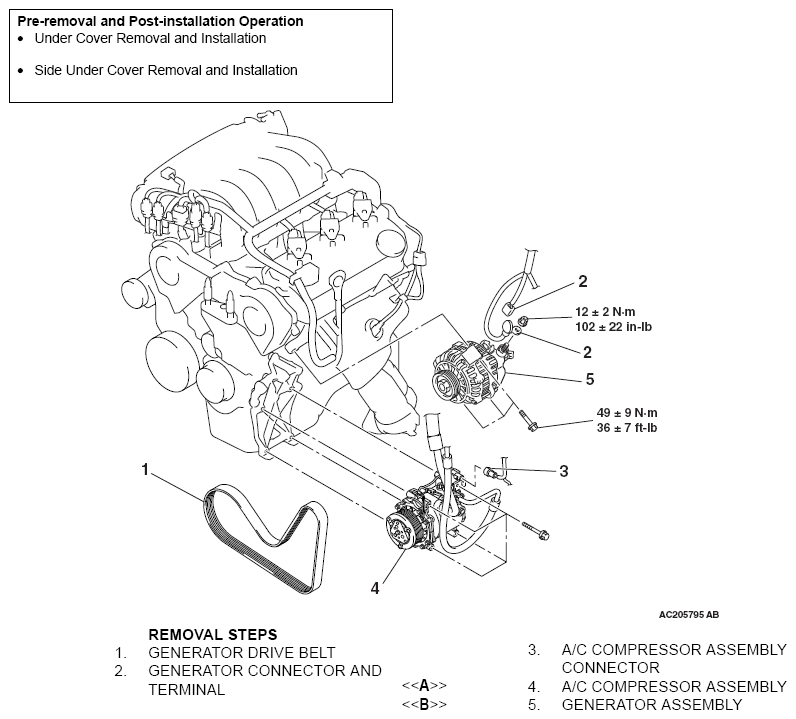

Fig 1: Generator Assembly Removal And Installation With Torque Specifications
G06699240Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
