G And Yaw Rate Sensor

This sensor is mounted under the center console, and detects lateral acceleration, longitudinal acceleration <vehicles for AWD> and yaw angular velocity of the vehicle.

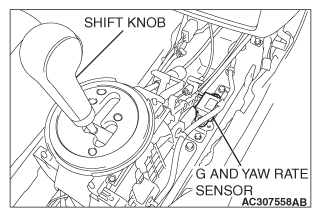

Fig 1: Identifying G And Yaw Rate Sensor
G06696345Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
