Removal And Installation

CAUTION:

Do not drop or shock the G and yaw rate sensor.
Always carry out calibration if steering angle is adjusted (Refer to G AND YAW RATE SENSOR CALIBRATION ). This is necessary because the TCL/ASC-ECU should update the G and yaw rate sensor neutral point.

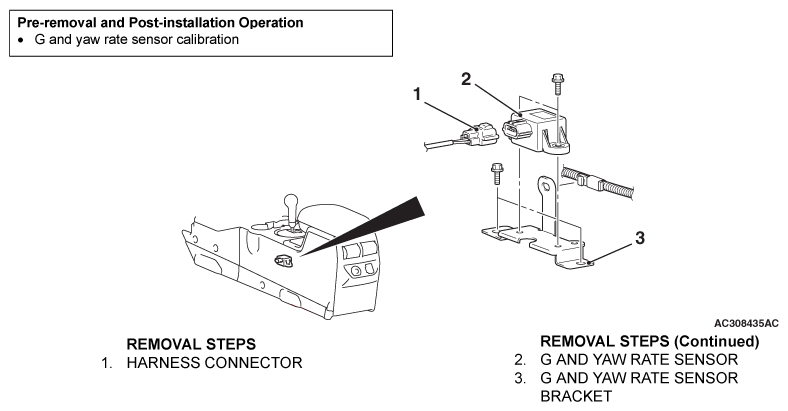

Fig 1: Removal/Installation Of G And Yaw Rate Sensor Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
