Key Reminder Switch Check

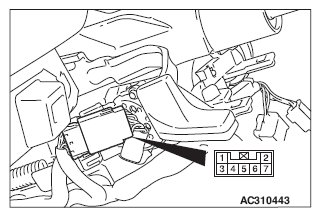

Disconnect key reminder switch connector C-312 without removing the key reminder switch and steering lock cylinder.
Check for continuity between terminal 4 and terminal 6.
KEY REMINDER SWITCH REFERENCE CHART
| STATUS OF IGNITION KEY |
TESTER CONNECTION |
SPECIFIED CONDITION |
| Removed |
4-6 |
Less than 2 ohms |
| Inserted |
4-6 |
Open circuit |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
