Ignition Switch Continuity Check

Disconnect ignition switch connector C-308 without removing the ignition switch and steering lock cylinder. Then check the continuity.

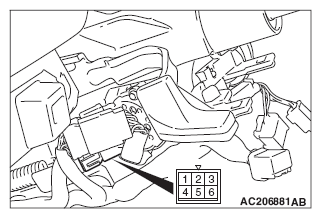

Fig 1: Ignition Switch Connector C-308
G06700423Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
IGNITION SWITCH CONNECTOR REFERENCE CHART

SWITCH POSITION CONNECT TESTER BETWEEN: SPECIFIED CONDITION
"LOCK" (OFF) 1-2
1-4
1-5
1-6		 Open circuit
"ACC" 1-6 Less than 2 ohms
"ON" 1-2
1-4
1-6		 Less than 2 ohms
"START" 1-2
1-4
1-5		 Less than 2 ohms
