Lighting Control Sensor Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

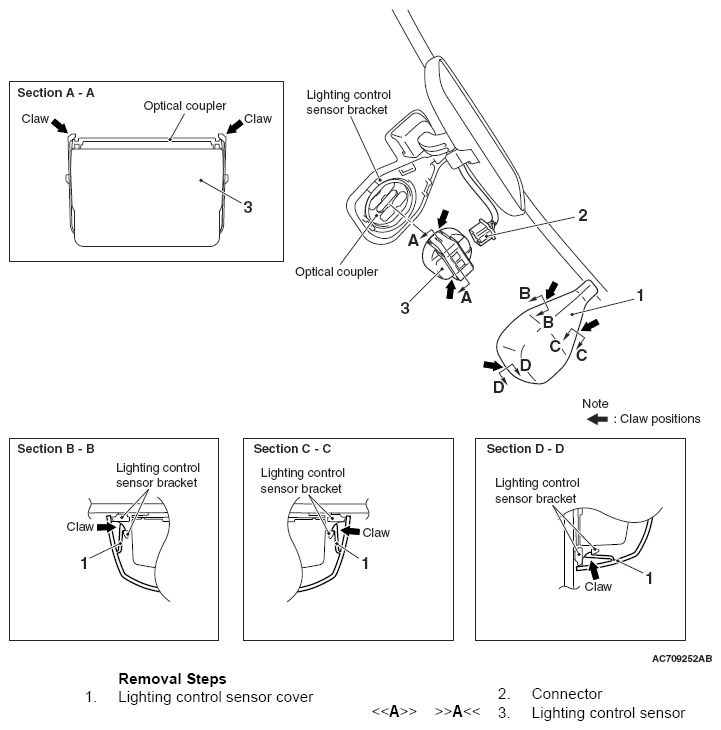

Fig 1: Identifying Lighting Control Sensor Components
G06673396Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
