Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before removing the front seat assembly, refer to SERVICE PRECAUTIONS and SIDE-AIRBAG MODULE(S) <Except for RALLIART> SIDE-AIRBAG MODULE(S) <RALLIART>.

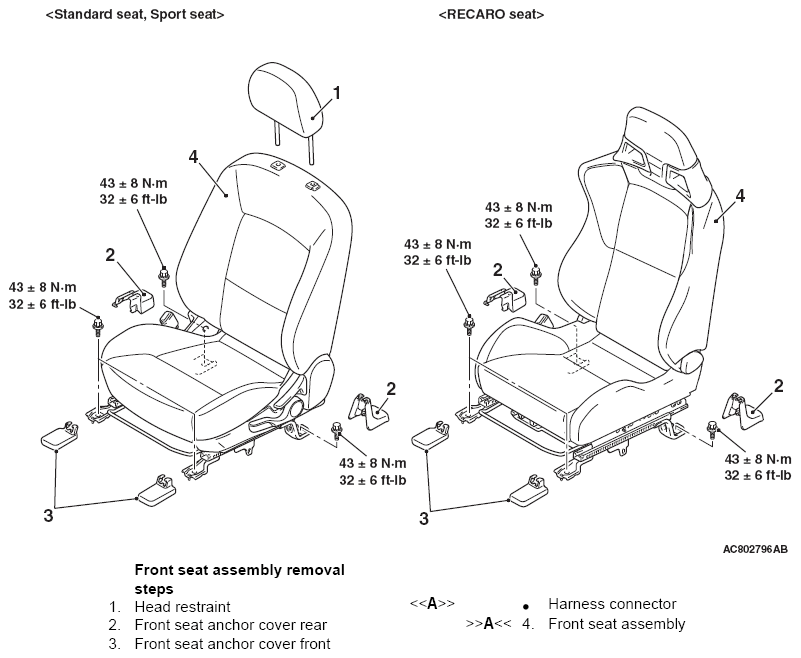

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications
G06673286Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
