System configuration

WARNING: This page is about a different variant/trim than selected.

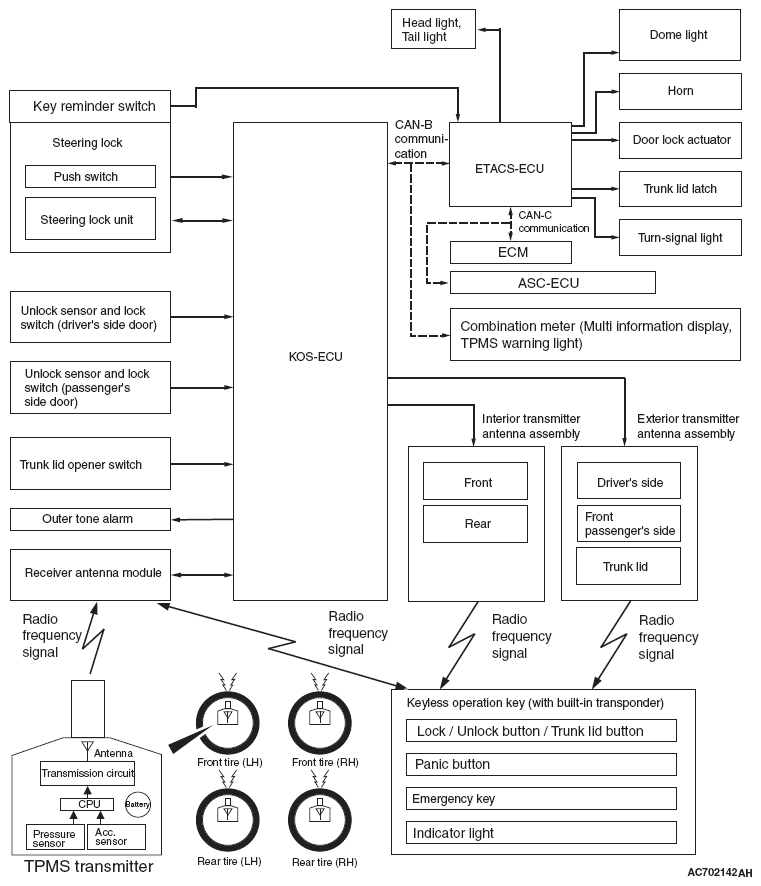

Fig 1: Keyless Operation System - Configuration Diagram
G06665968Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
