Key Interlock Mechanism Check

KEY INTERLOCK MECHANISM CHECK
1. Perform the following checks.





2. If there is a problem with above operations, install the key interlock cable according to the procedure below. (Automatic adjustment)
1) Disconnect the key interlock cable connection (shift lever side).

CAUTION
Leave the ignition switch in the LOCK (OFF) position until the key interlock cable installation is completed.

2) Move the shift lever to the P position, and turn the ignition switch to the LOCK (OFF) position.





3) Install the tip of key interlock cable to the lock cam of shift lever assembly, using a caution not to twist the inner cable.
4) Install the adjuster case with its lock guide pulled up (unlocked).

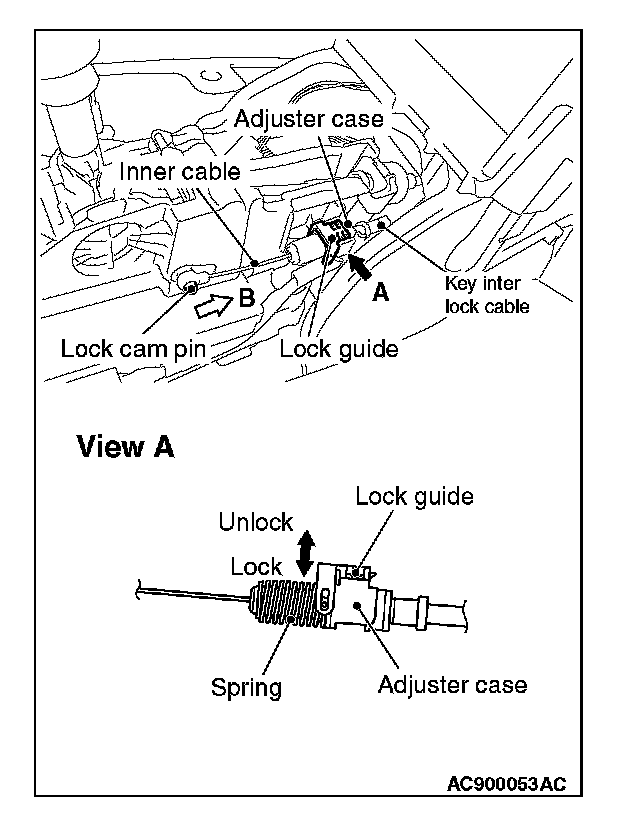

5) With the lock cam pin pushed in the direction B as shown in the figure to remove the slack from the key interlock cable, securely lower the lock guide and lock it.

NOTE: The lock position of the key interlock cable is automatically adjusted by a spring.
