Fail-Safe Function Reference Table

FAIL-SAFE FUNCTION REFERENCE TABLE

The control is carried out, which keeps the safety driving by the preset control logic when the diagnostic trouble code is output. The diagnostic trouble code having the fail-safe function is as follows.

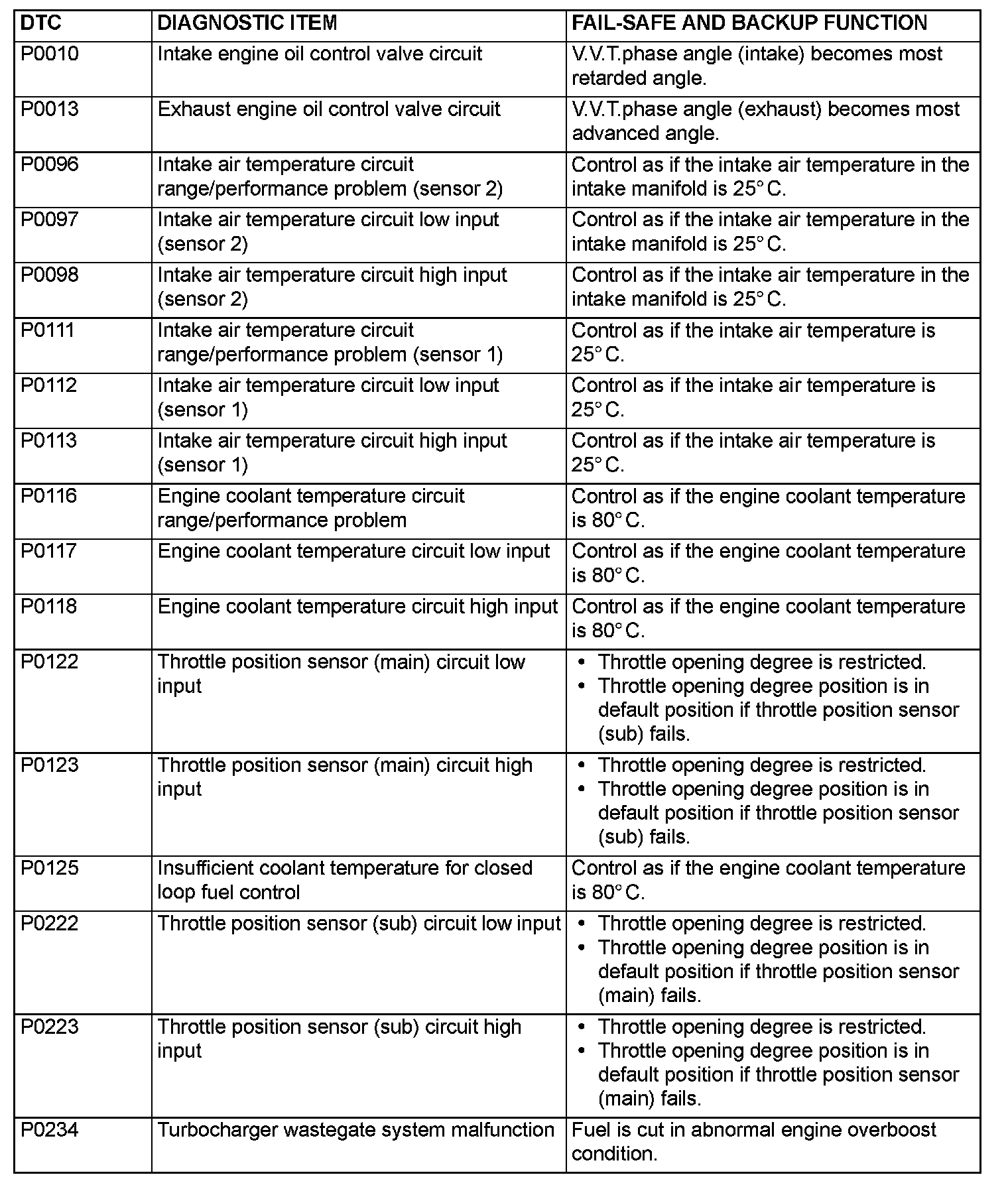

P0010-P0234:

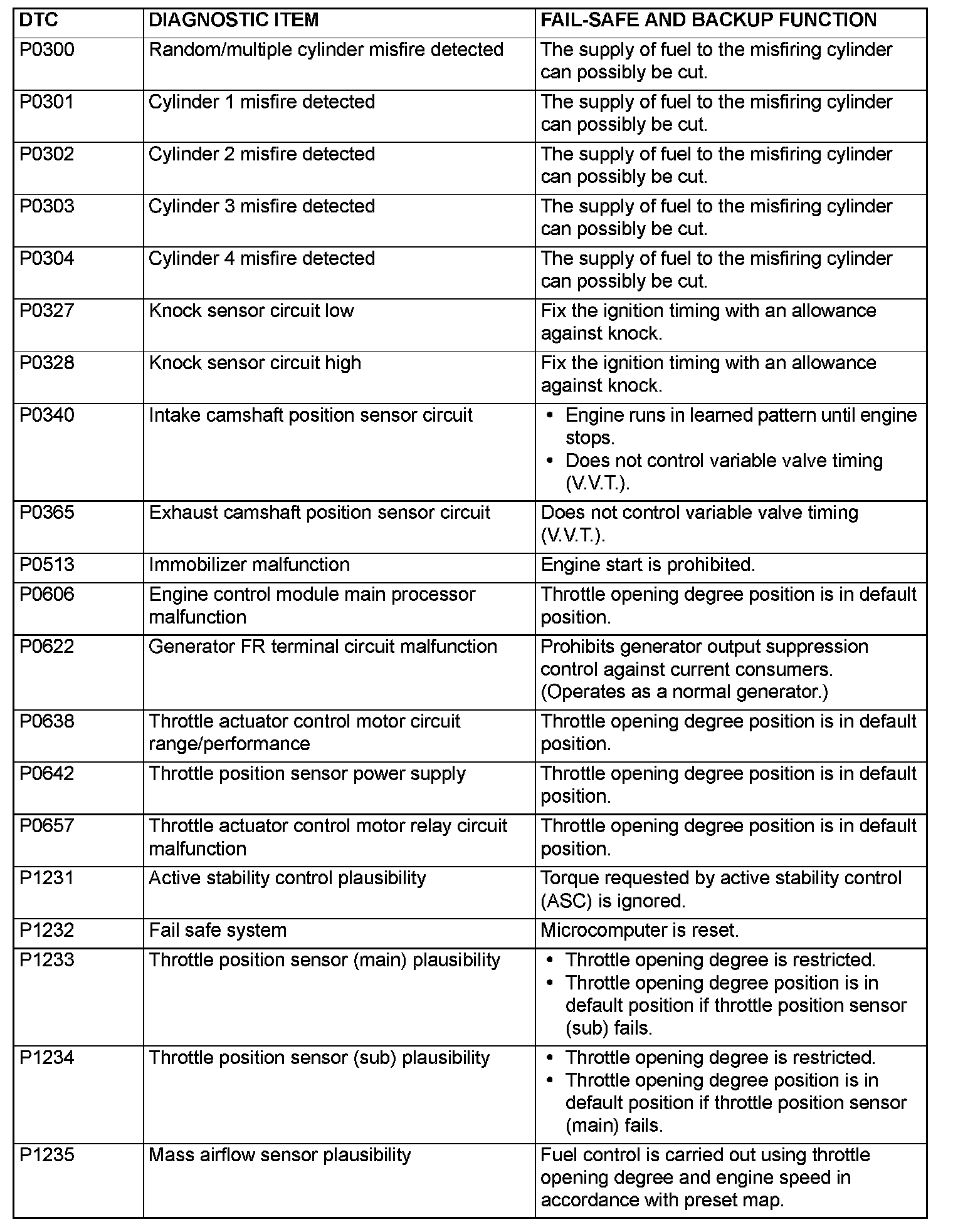

P0300-P1235:

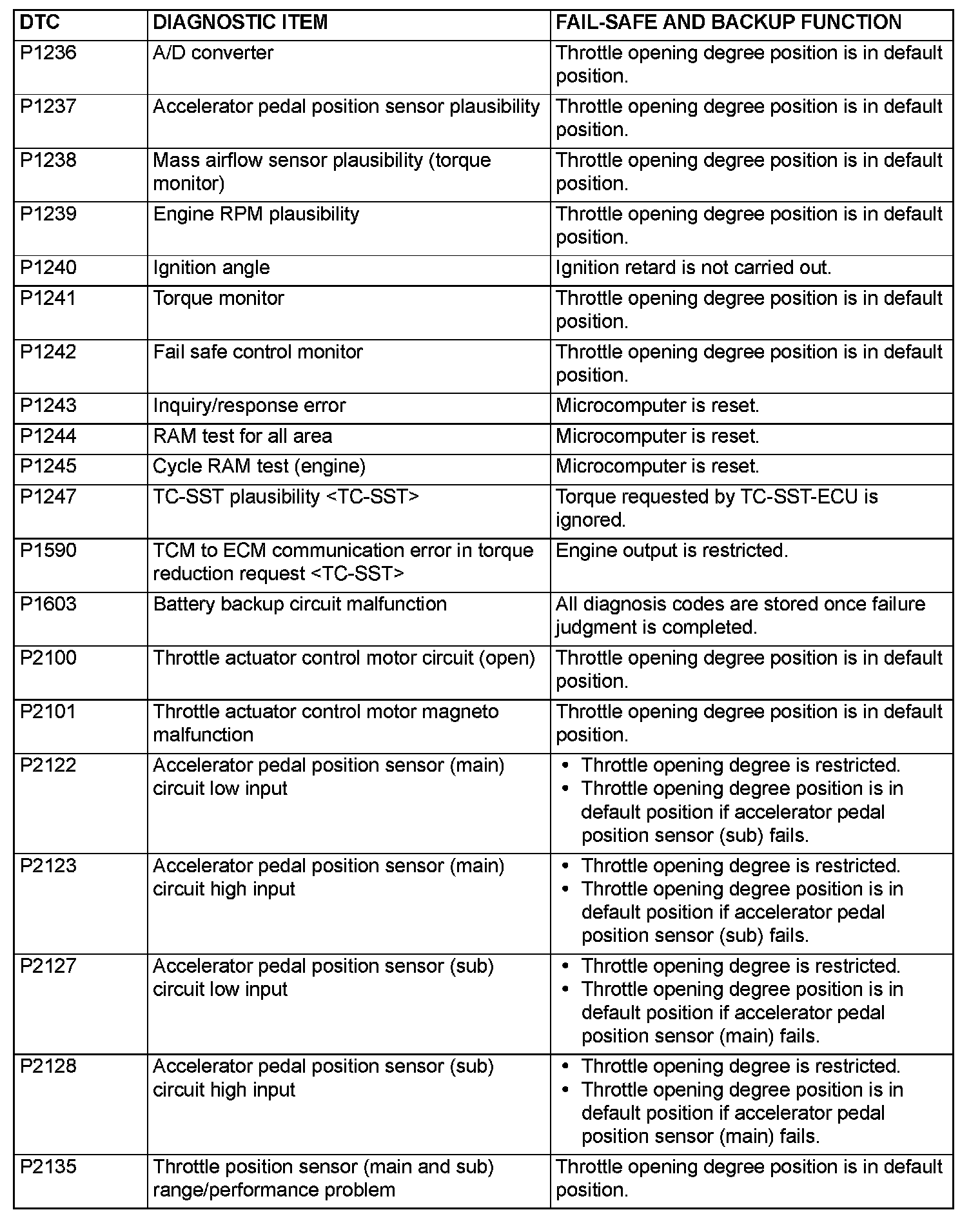

P1236-P2135:

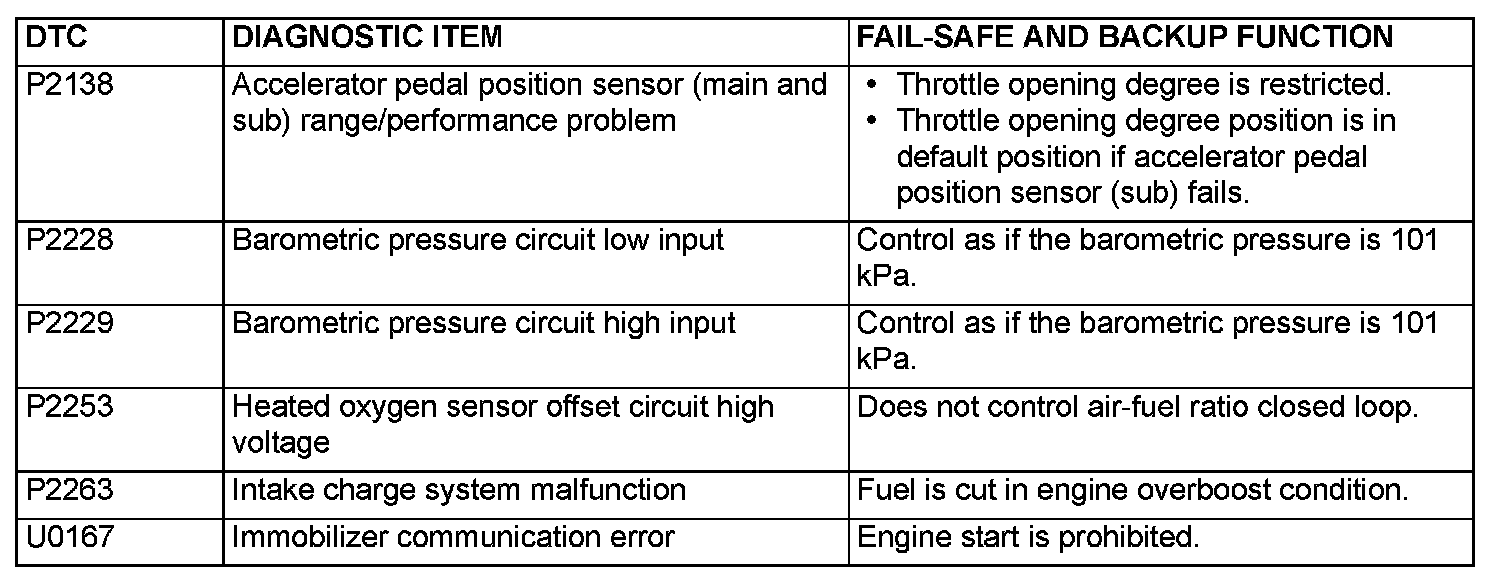

P2138-P2263, U0167:
