Overhaul

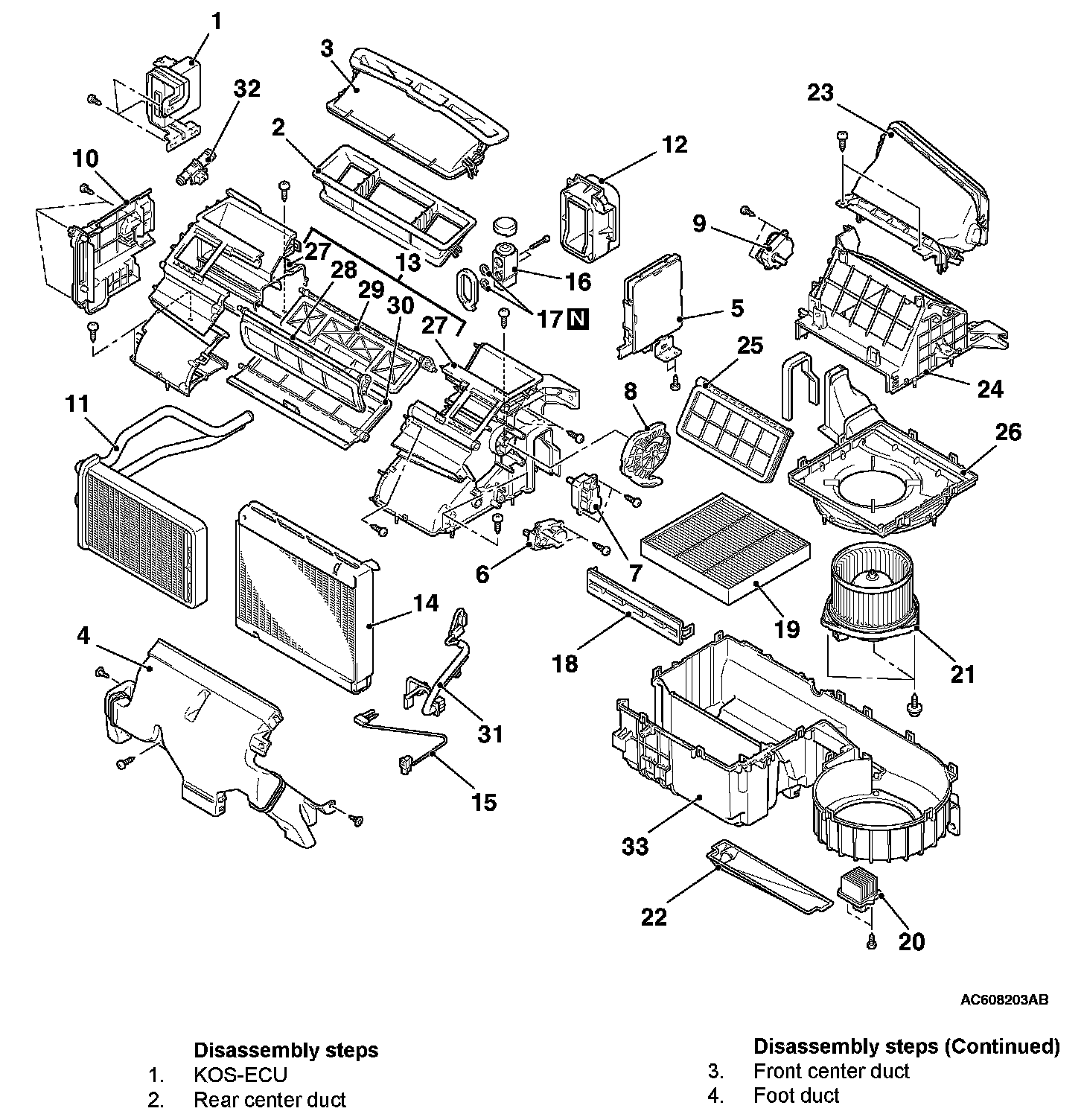

HEATER UNIT AND BLOWER ASSEMBLY
DISASSEMBLY AND REASSEMBLY

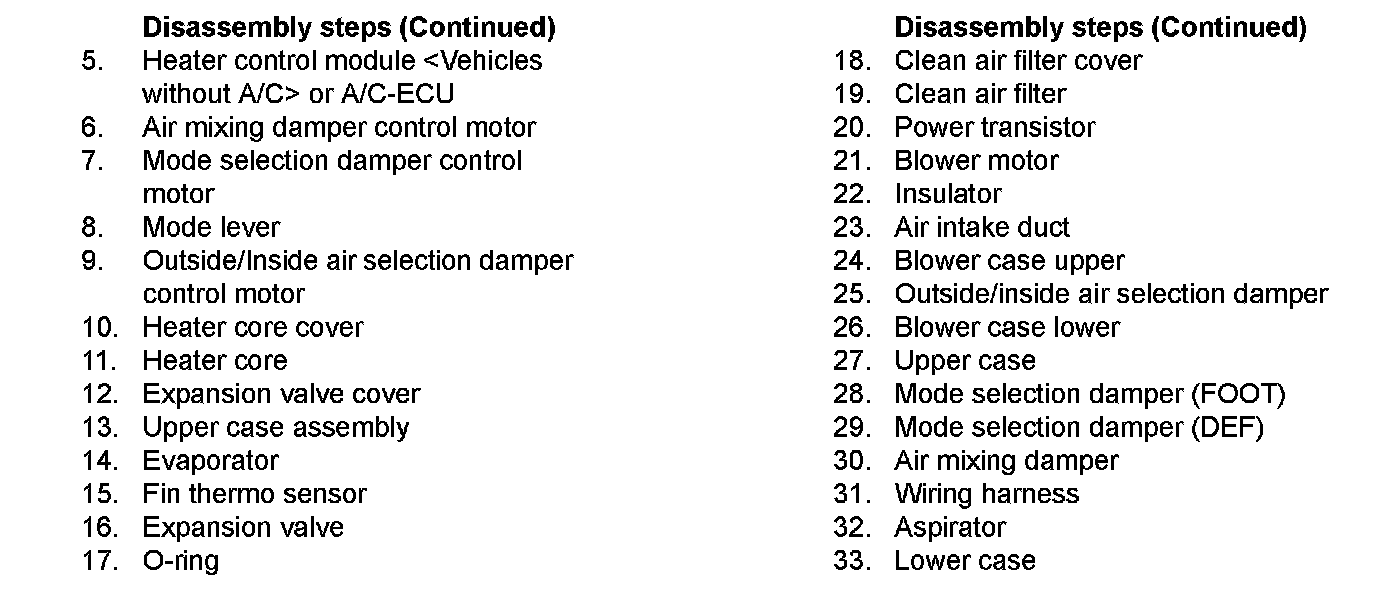

Removal Steps 1-33 (Part 1):
Removal Steps 1-33 (Part 2):
