Rectifier Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Check the condition of the (+) heat sink by checking the continuity between the (+) heat sink and each of the stator coil lead connecting terminals.

    If the continuity is present for both terminals, or if no continuity is present for both terminals, the diode is shorted. Replace the rectifier assembly.

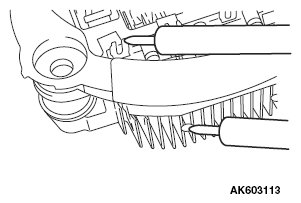

    Fig 1: Checking Continuity Between Heat Sink And Stator Coil Lead
    G06671883Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Check the condition of the (-) heat sink by checking the continuity between the (-) heat sink and each of the stator coil lead connecting terminals.

    If the continuity is present for both terminals, or if no continuity is present for both terminals, the diode is shorted. Replace the rectifier assembly.

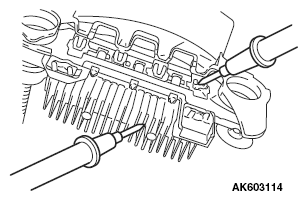

    Fig 2: Checking Continuity Between Heat Sink And Stator Coil Lead
    G06671884Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
