Removal And Installation

CAUTION:
  • Do not use an impact wrench.
  • Do not drop or shock the G and yaw rate sensor.
  • When the G and yaw rate sensor is replaced, always carry out calibration to make ASC-ECU learn the neutral point. (Refer to G AND YAW RATE SENSOR CALIBRATION  .)

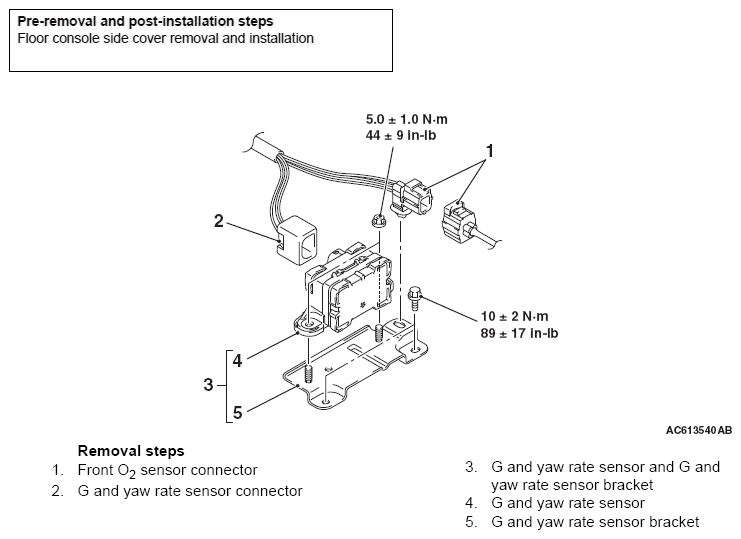

    Fig 1: G And Yaw Rate Sensor Replacement Components With Torque Specifications
    G06675330Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
