Removal And Installation

CAUTION: To store the change pulley ratio status of the transaxle assembly in the TCM memory, drive the vehicle at 3 km/h (1.9 mph) or faster after replacing the TCM.

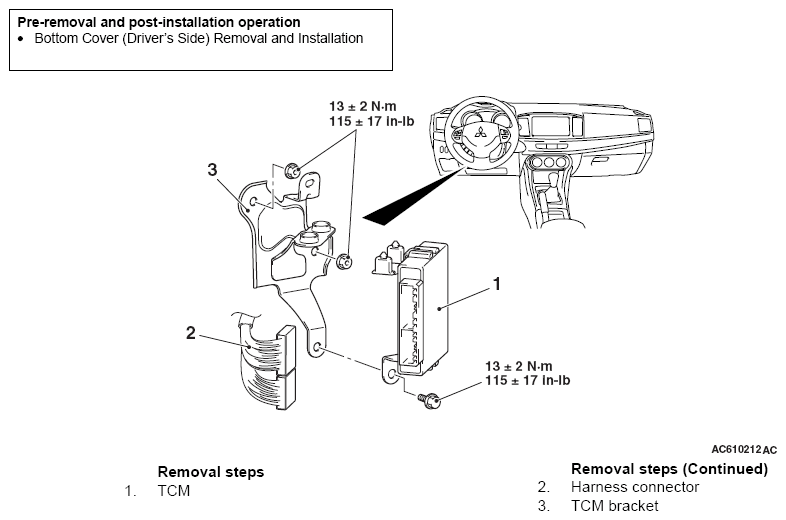

Fig 1: Transaxle Control Module (TCM), Harness Connector And TCM Bracket With Torque Specifications
G06665822Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
