Spark Plug Gap Check

Check the plug gap with the wire type plug gauge. Replace it if the limit is exceeded.

Standard value: 0.7 - 0.8 mm (0.028 - 0.031 inch)

Limit: 1.2 mm (0.047 inch)

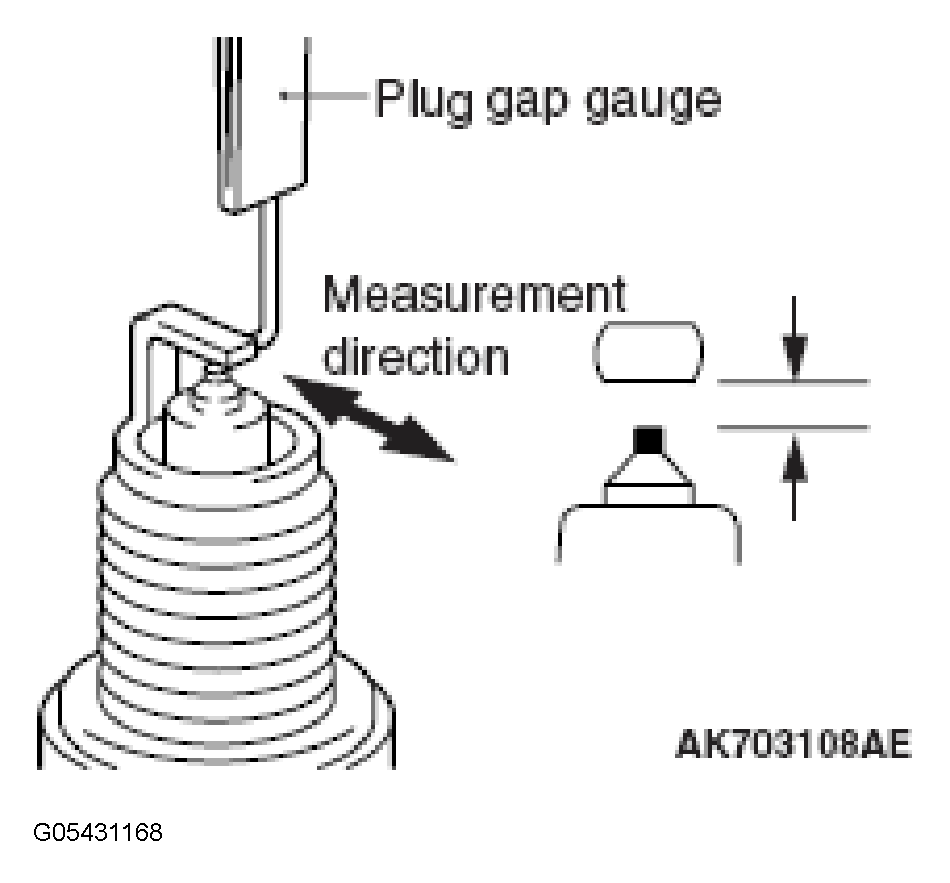

Fig 1: Checking Plug Gap With Wire Type Plug Gauge

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
