Alternator: Diagrams

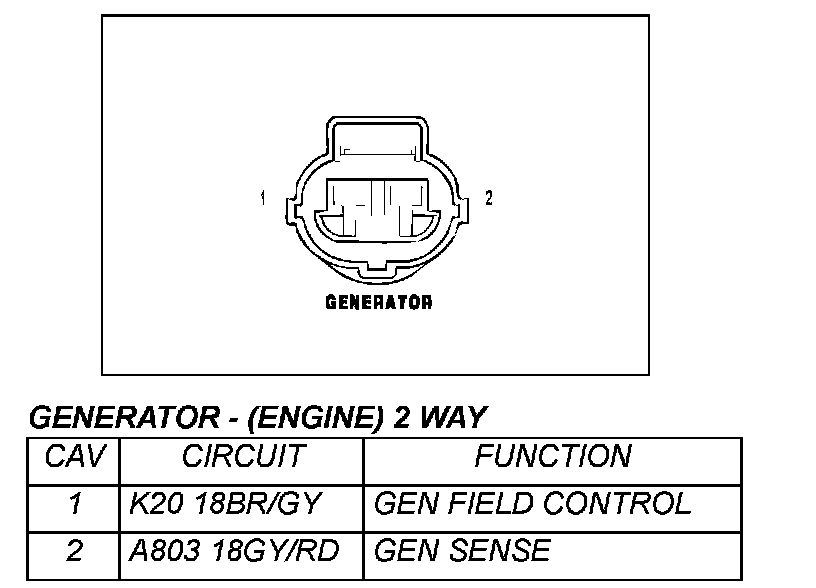

Generator - (Engine) 2 Way:

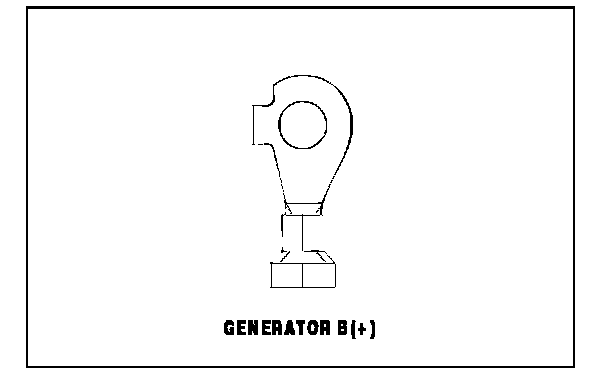

Generator B(+) - (Battery) 1 Way (Part 1):

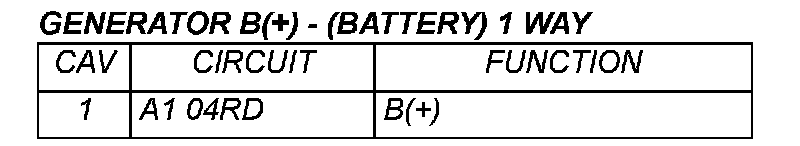

Generator B(+) - (Battery) 1 Way (Part 2):
