System Diagram

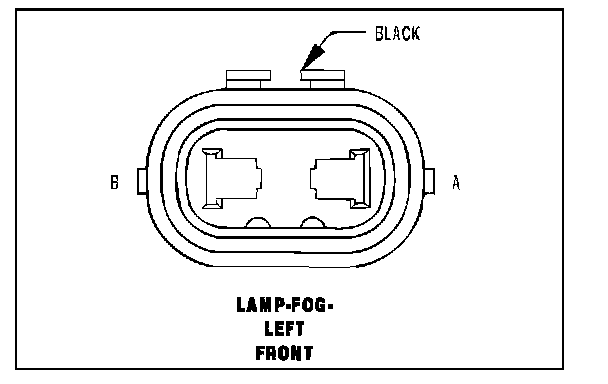

Lamp - Fog - Left Front - Black (Headlamp And Dash) 2 Way (Part 1):

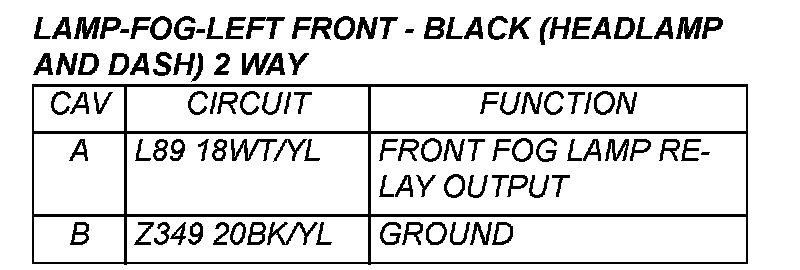

Lamp - Fog - Left Front - Black (Headlamp And Dash) 2 Way (Part 2):

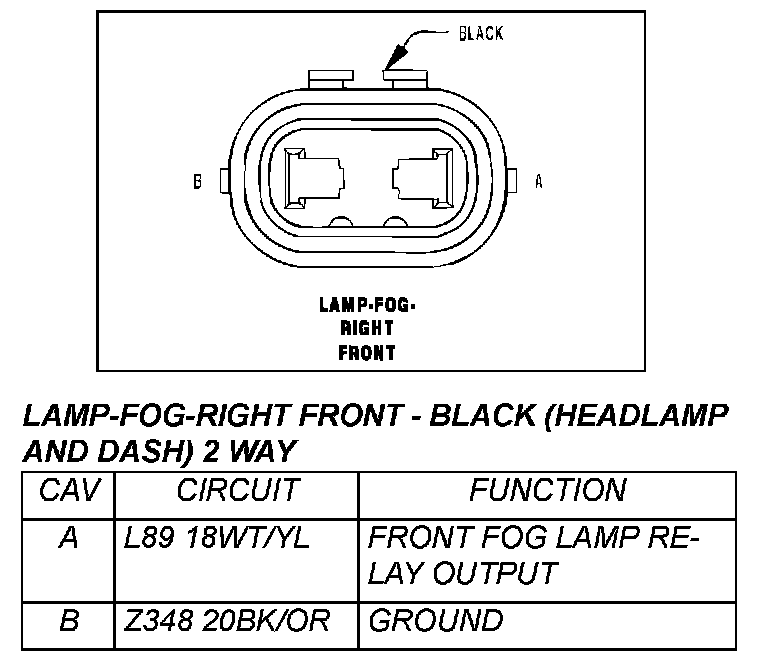

Lamp - Fog - Right Front - Black (Headlamp And Dash) 2 Way:
