Home >> Mitsubishi >> 2009 >> Lancer L4-2.4L (4B12) >> Repair and Diagnosis >> Transmission and Drivetrain >> Continuously Variable Transmission/Transaxle >> Testing and Inspection >> Scan Tool Testing and Procedures >> Shift Lever >> Data List Reference Table
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

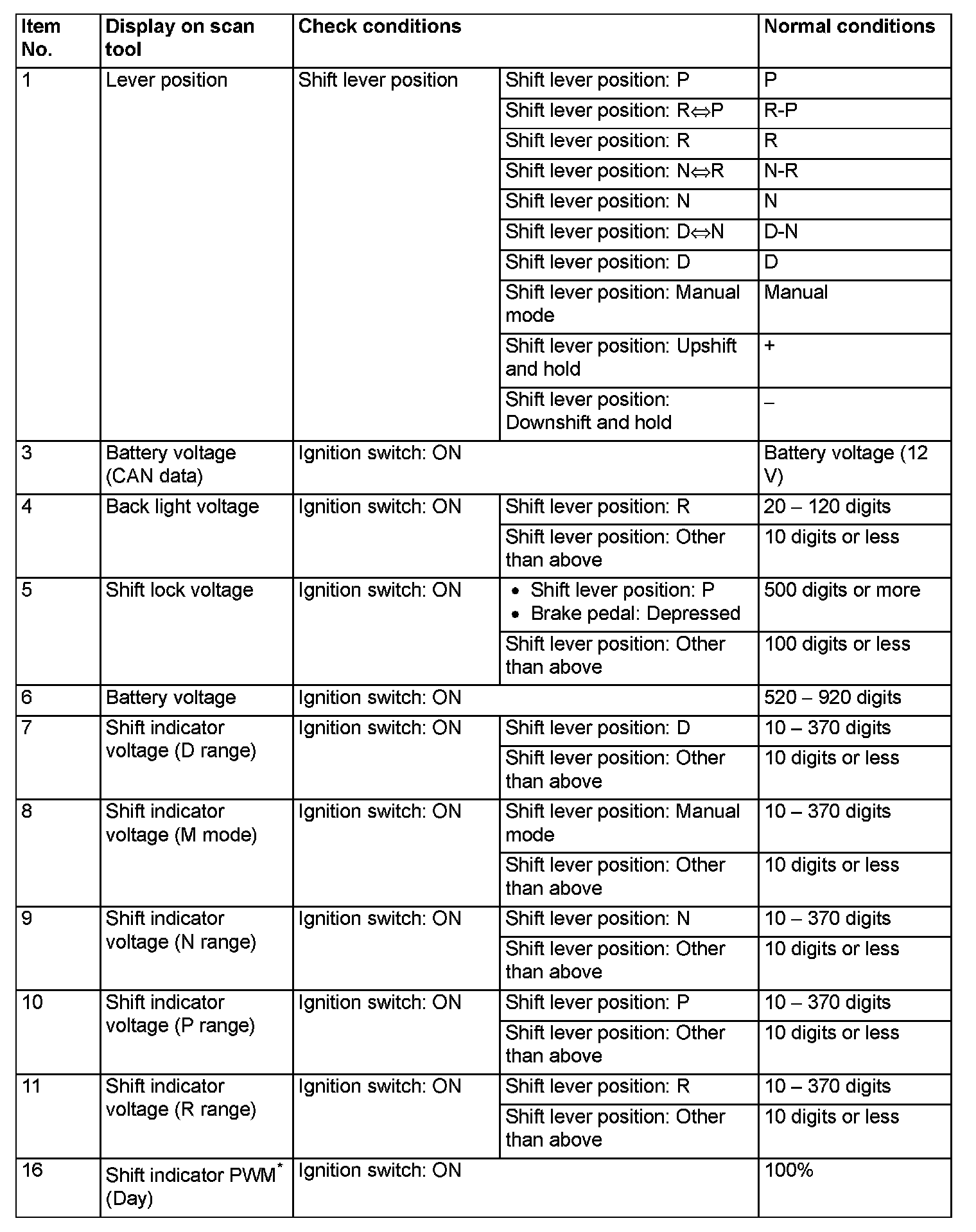

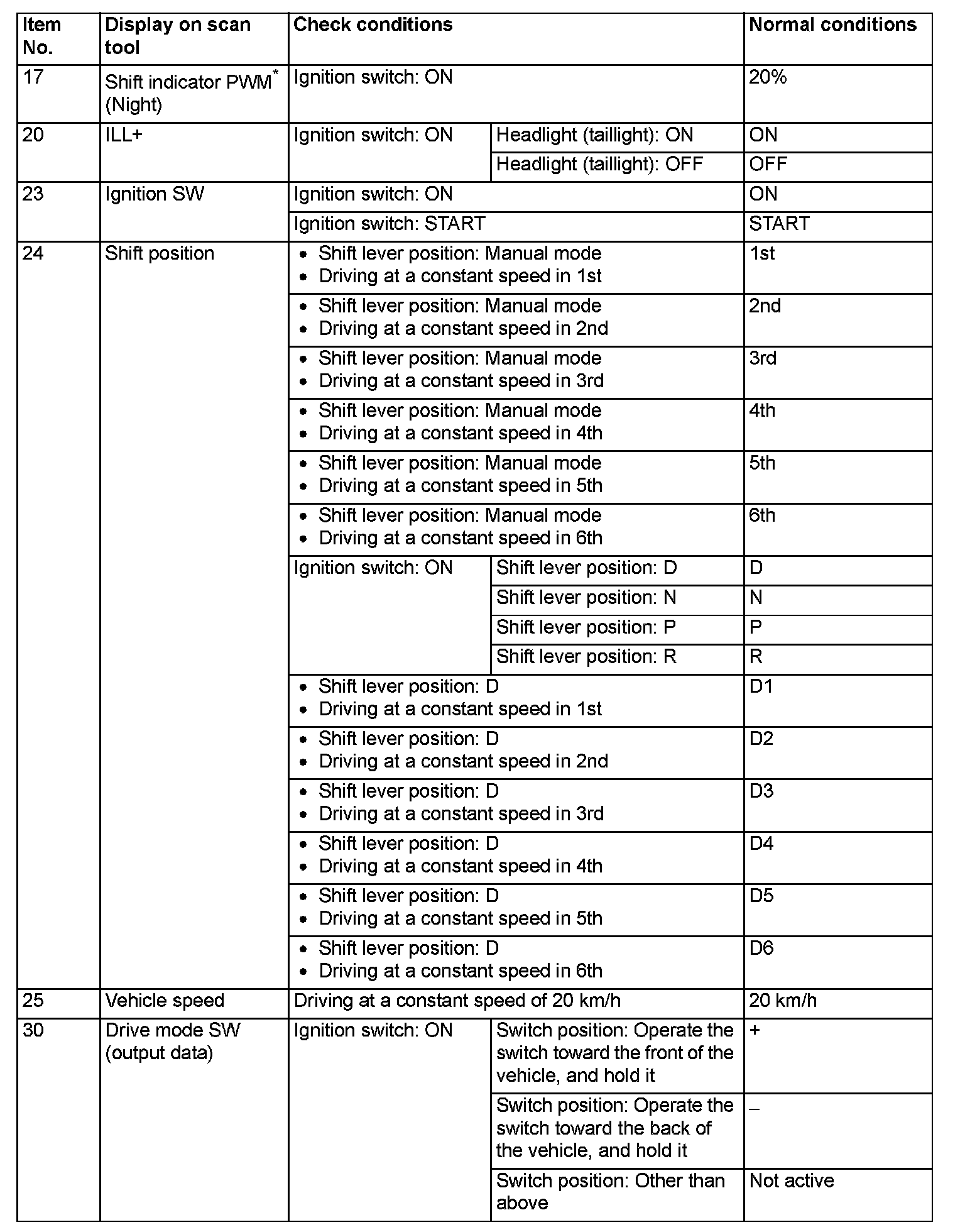

Data List Reference Table

Part 1:



Part 2:



Part 3:
