General Data and Specifications

GENERAL DATA AND SPECIFICATIONS

[2.0L NON-TURBO ENGINE, 2.4L ENGINE]

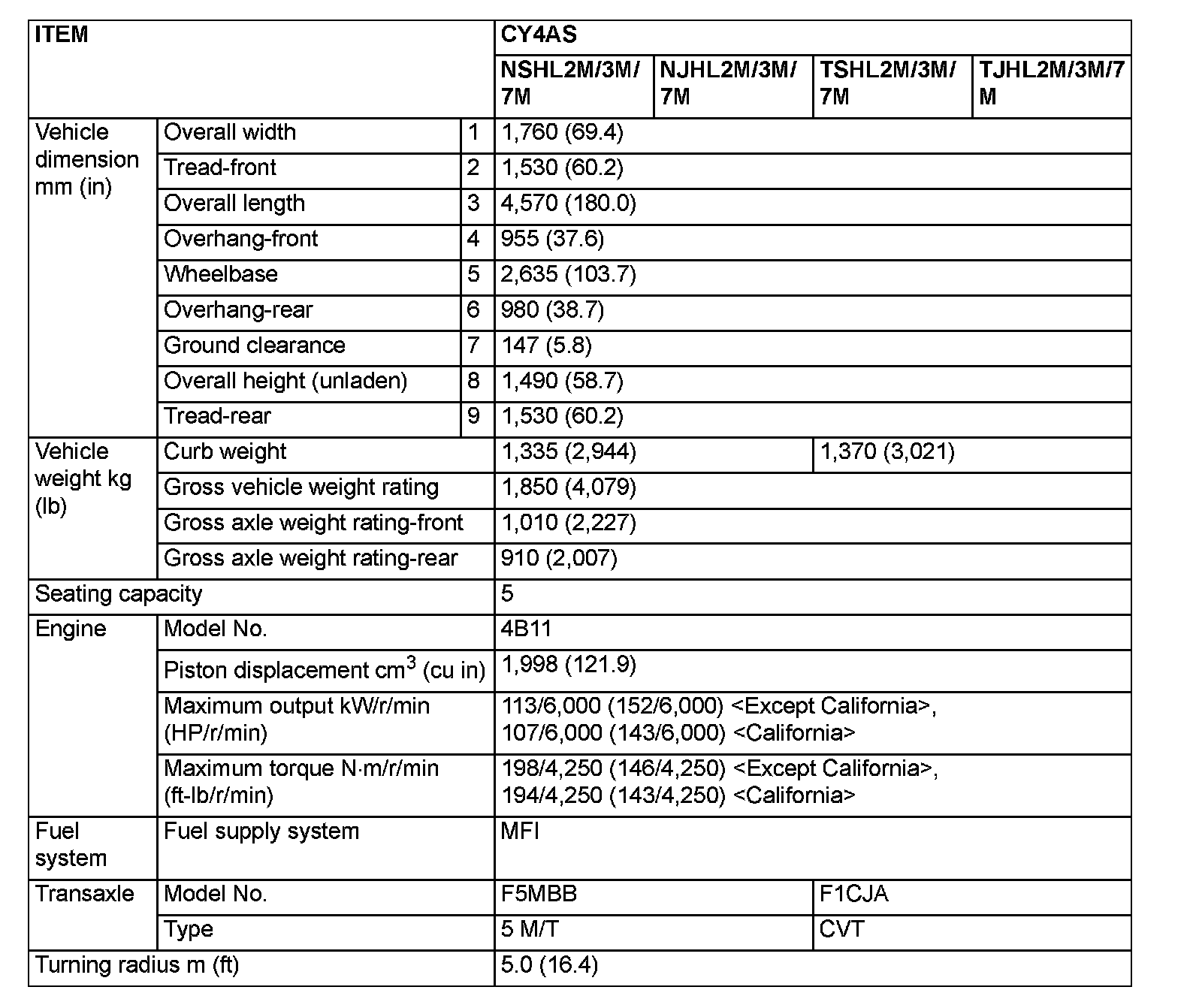

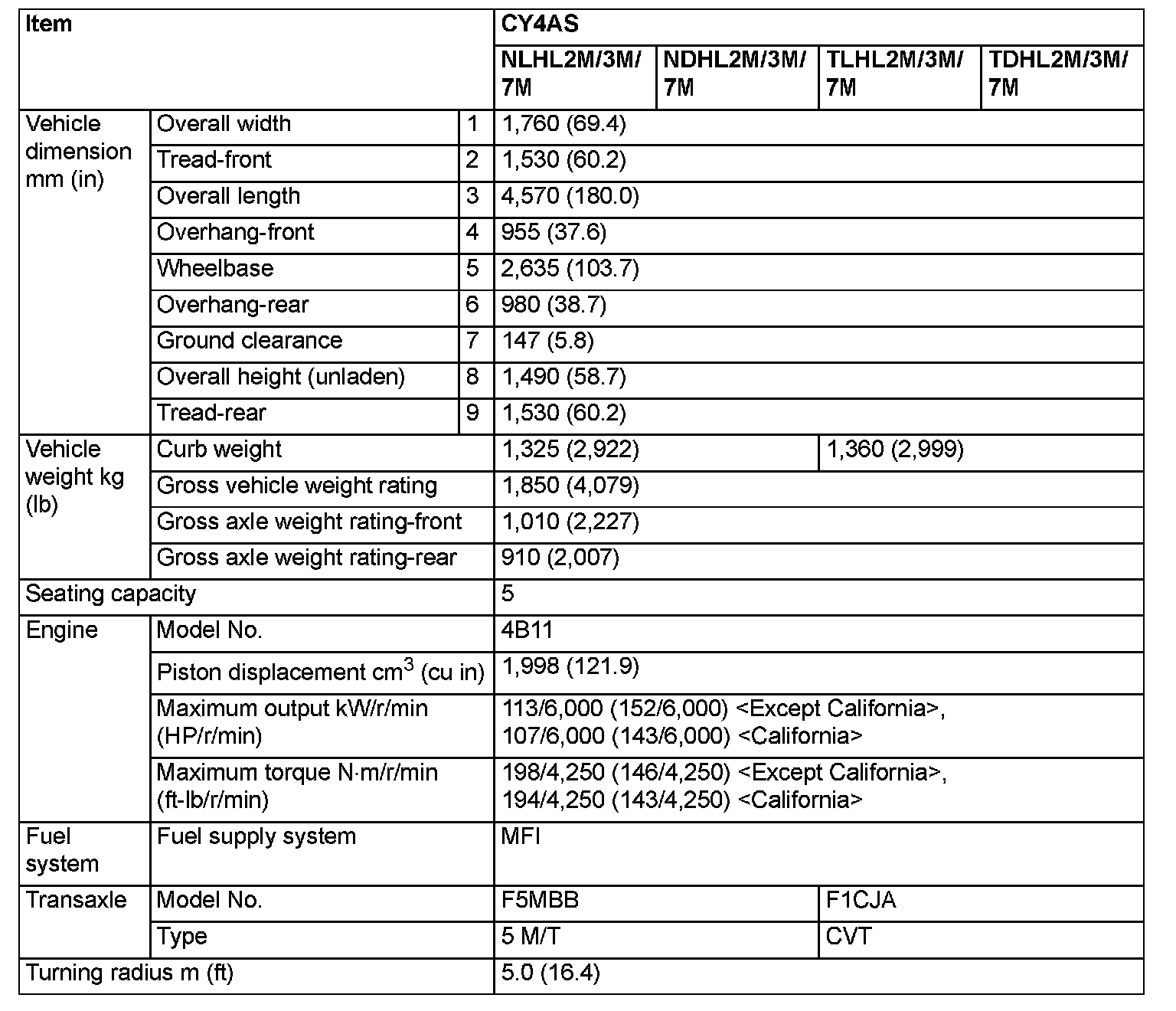

2.0L ENGINE

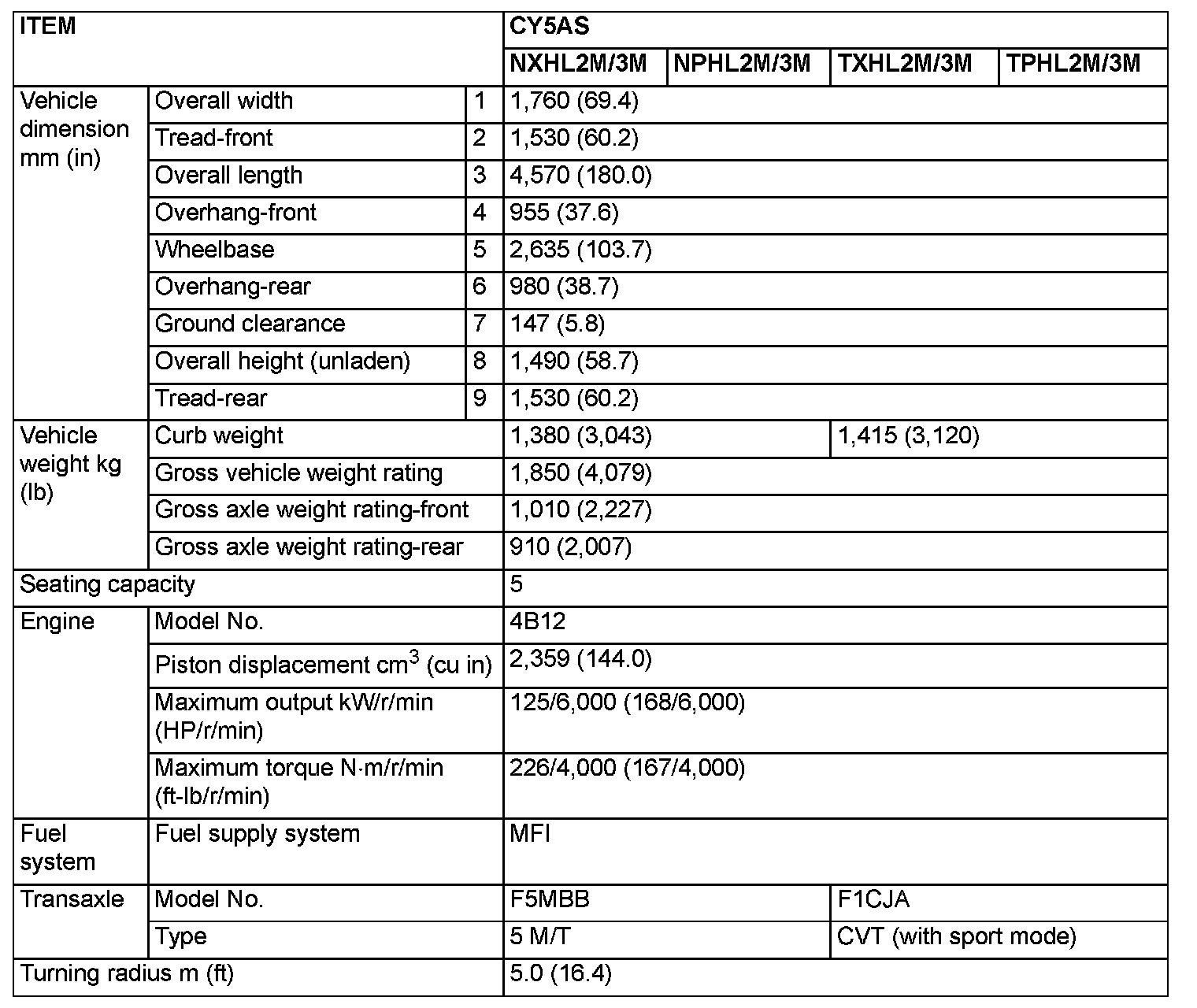

2.4L ENGINE

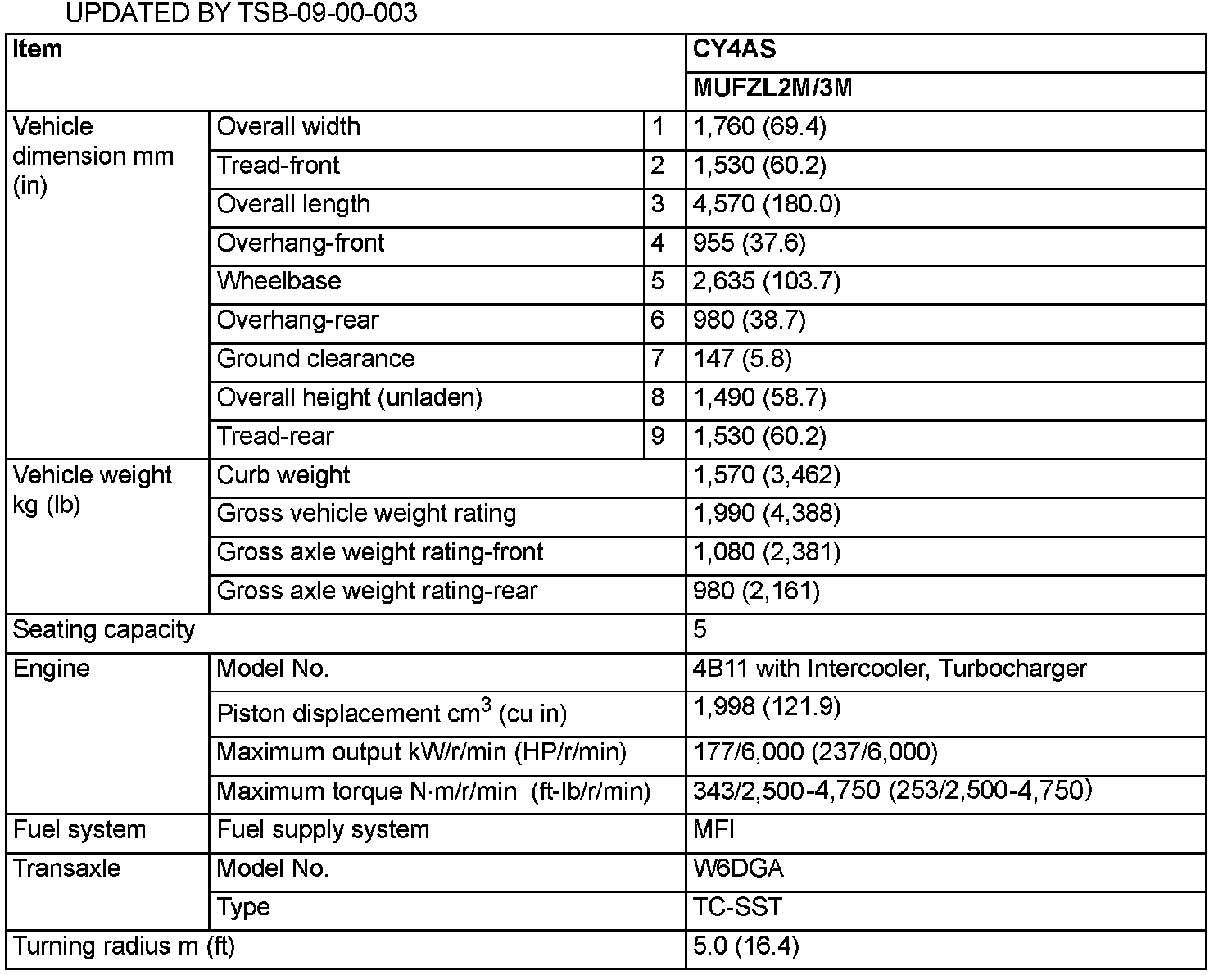

[2.0L TURBO ENGINE]
