Disassembly And Assembly: Notes

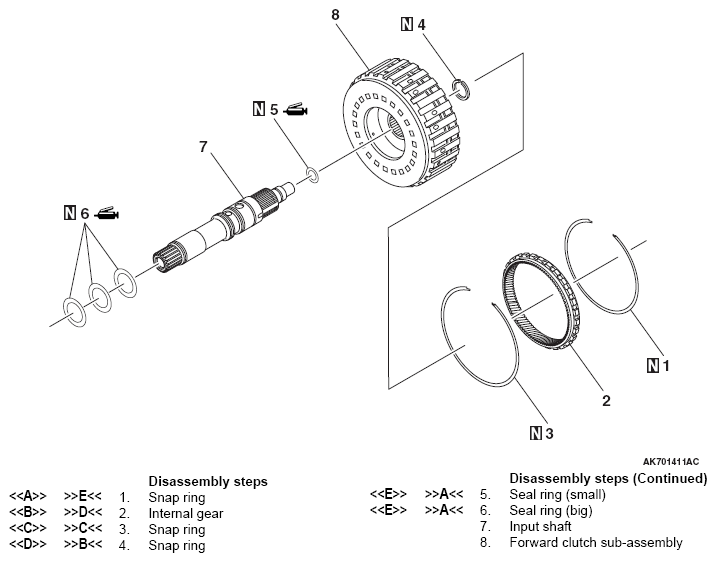

Fig 1: Identifying Forward Clutch Assembly
G05904199Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
