USB Box Removal And Installation

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

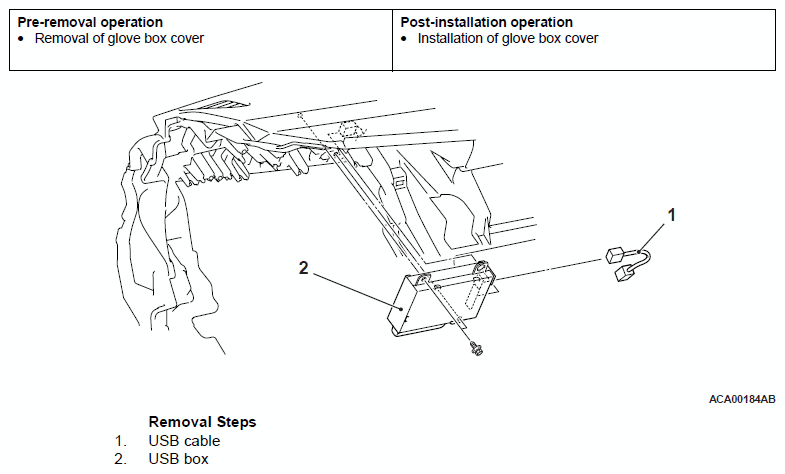

Fig 1: Identifying USB Box & USB Cable
G07035109Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
