Schematic Diagram

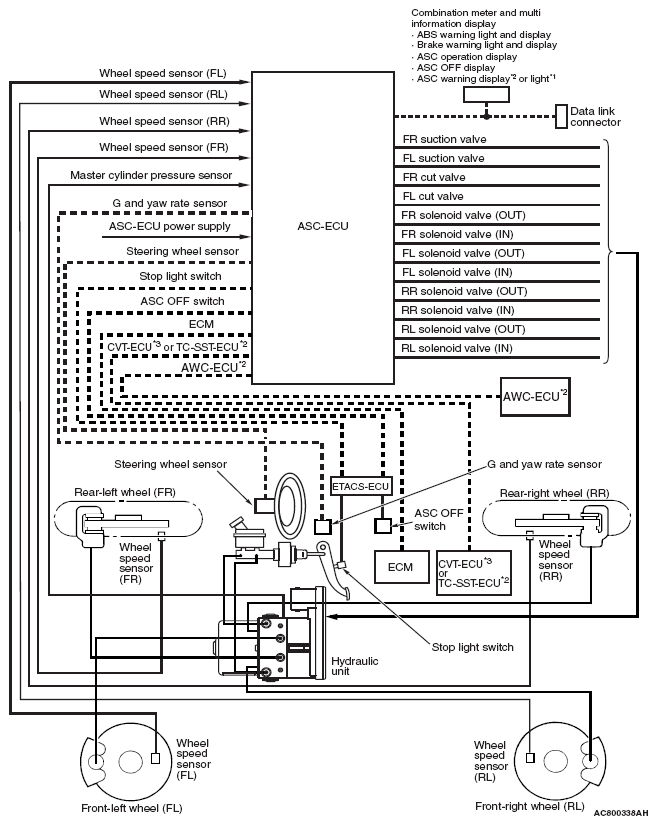

Fig 1: Active Skid Control System (ASC) Schematic Diagram
G05904837Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
  • Dashed lines indicate the CAN bus line.
  • *1 : Except vehicles for RALLIART
  • *2 : Vehicles for RALLIART
  • *3 : Vehicles for CVT
