Removal And Installation (2.0L Engine Non-Turbo, 2.4L Engine): Notes

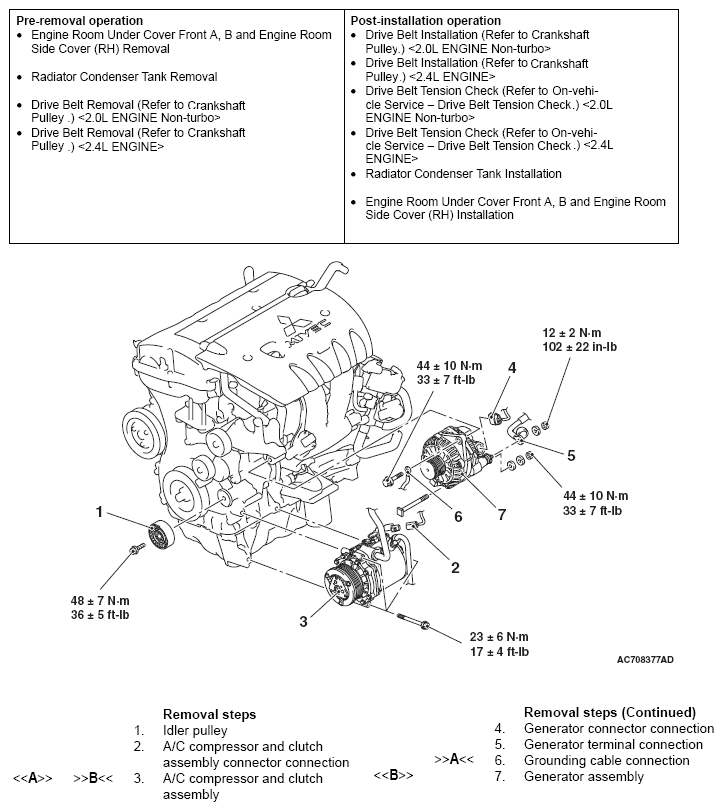

Fig 1: Generator Assembly Replacement Components - 2.0L Engine Non-Turbo, 2.4L Engine With Torque Specifications
G05903618Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
