Tightening Specifications

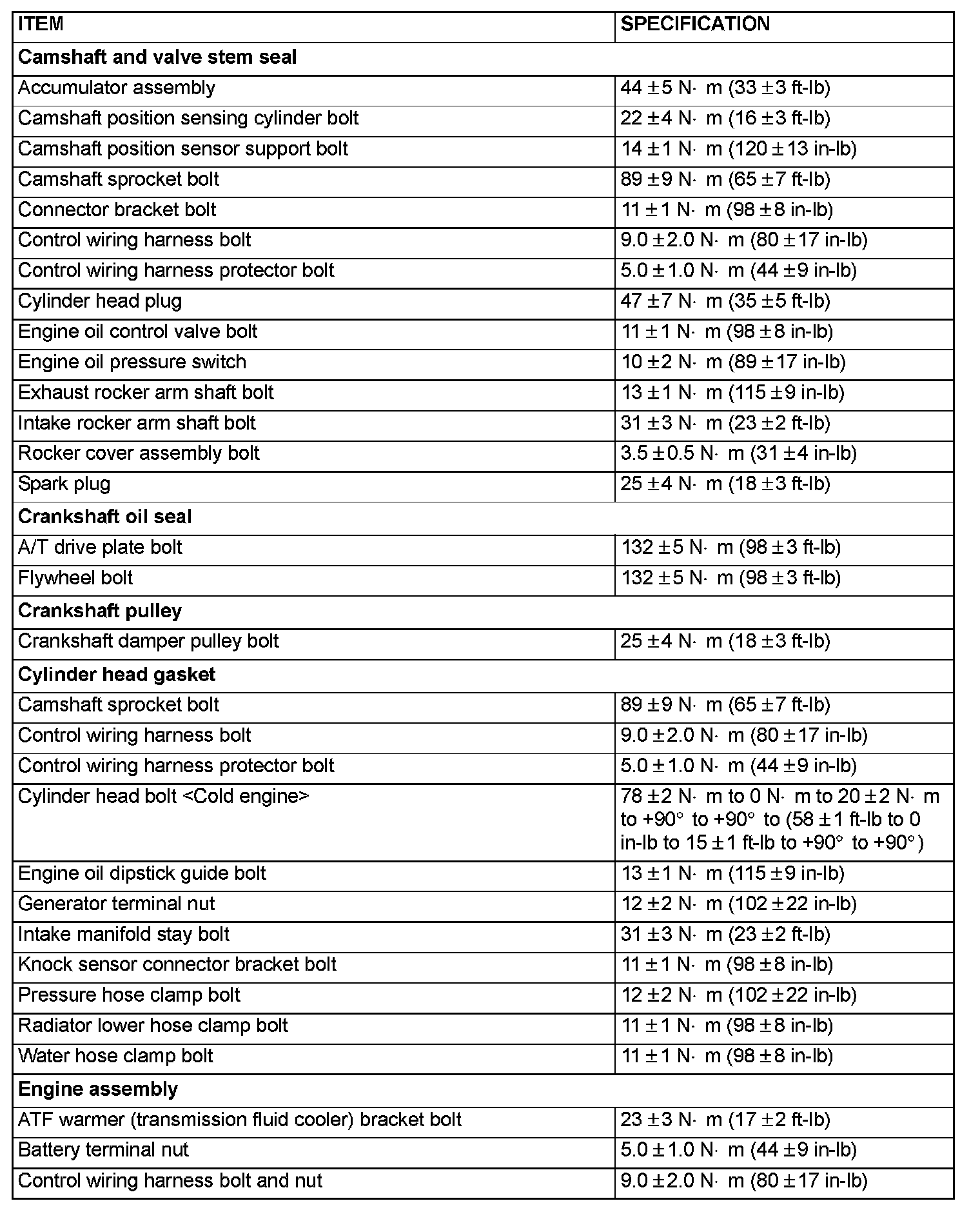

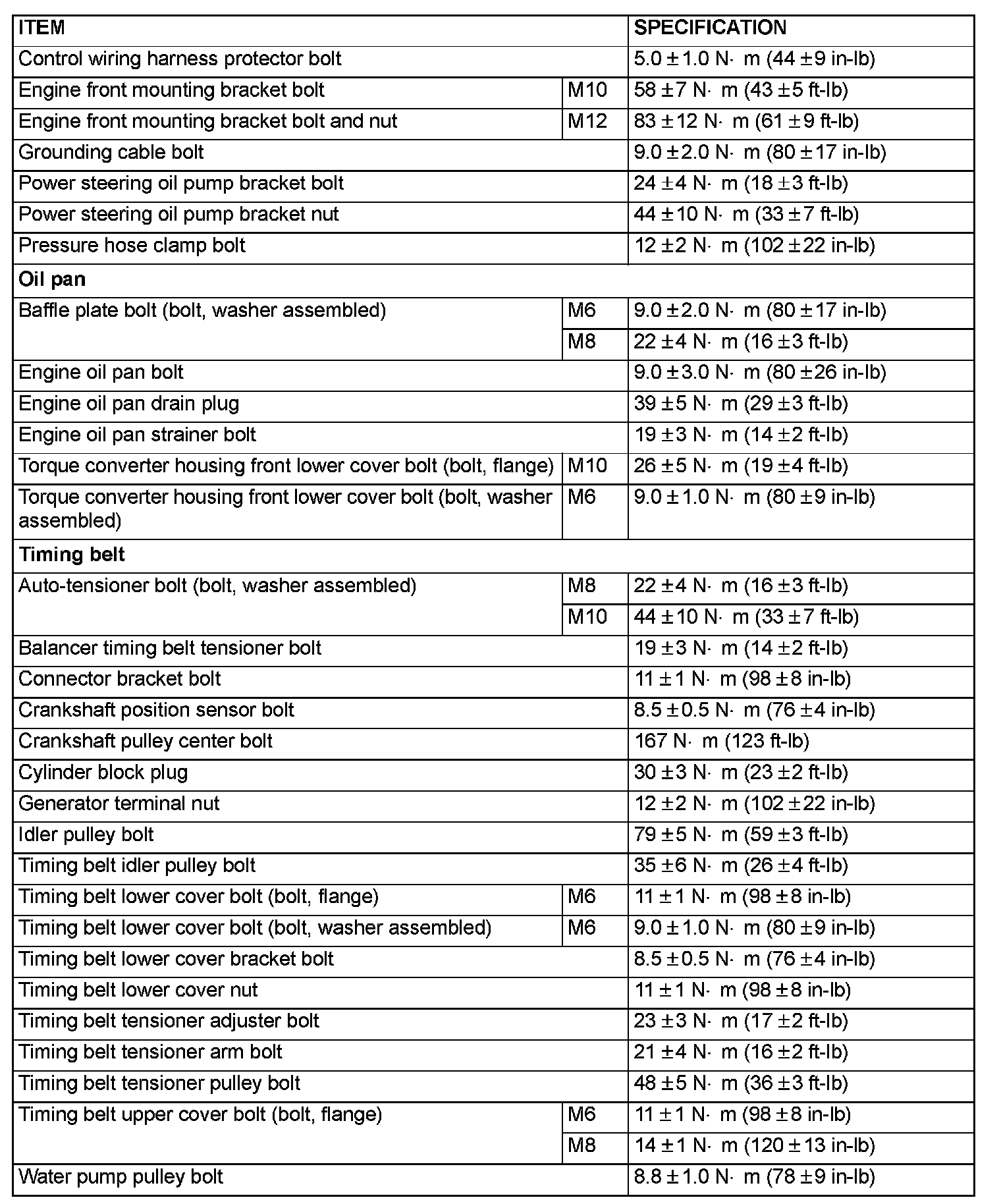

Fastener Tightening Specifications








Cylinder Head Bolt Reusability
If the bolts are longer than the limit, replace the bolts.
Limit 99.4 mm (3.91 inches)
