Eclipse L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Body Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Input Signal Chart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Input Signal Chart
INPUT SIGNAL CHART
SWS MONITOR

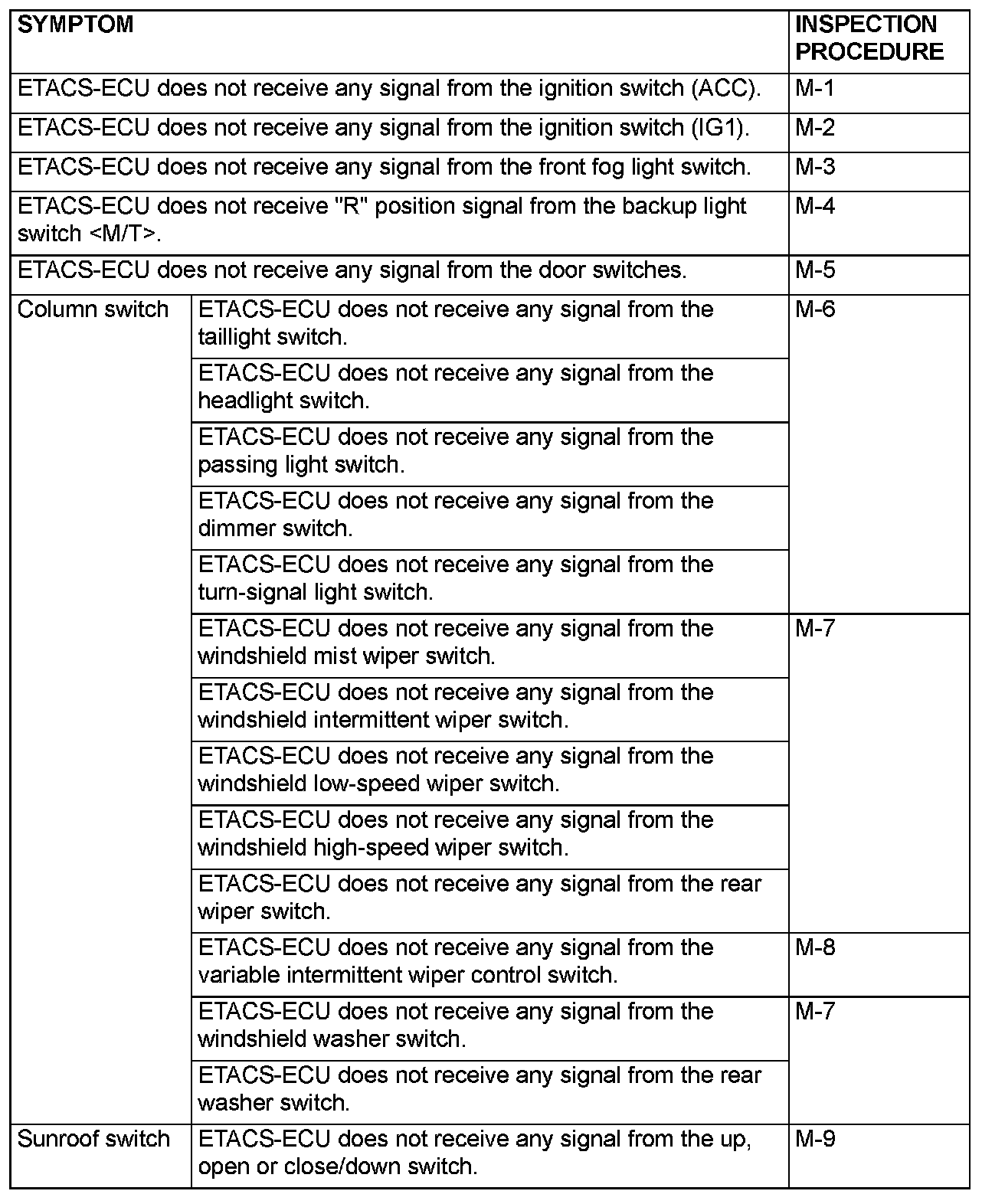

If a problem is found in the Data List inspection, observe the table below.
SWS Monitor:
SCAN TOOL OR VOLTMETER

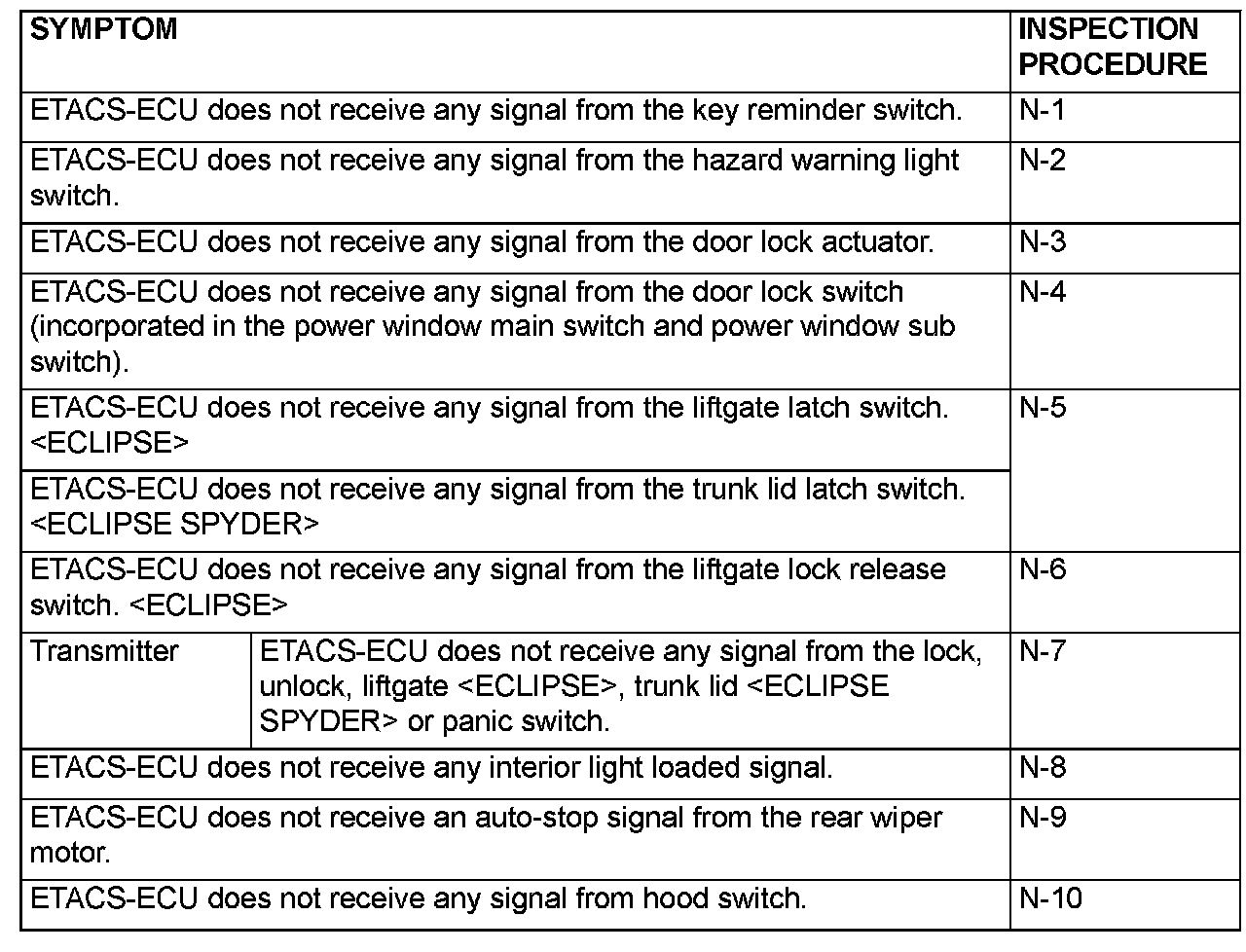

If a problem is found in the Pulse Check, observe the table below.
Scan Tool Or Voltmeter:
