Removal And Installation

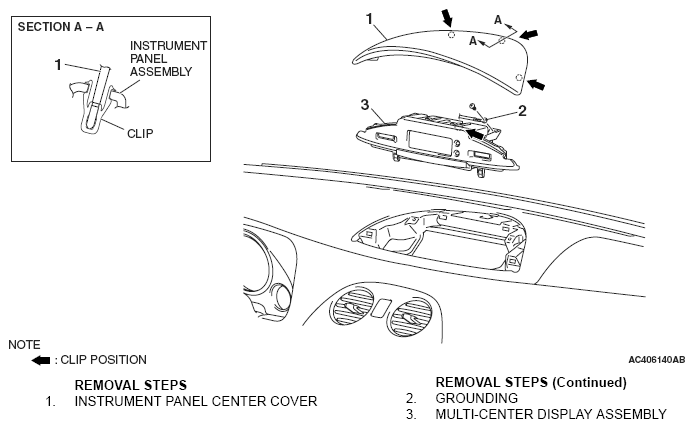

Fig 1: Removal/Installation Of Multi-Center Display
G05106563Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
