Data List Reference Table
This article has been updated by technical service bulletin 09 23 002 dated April 2009.
DATA LIST REFERENCE TABLE

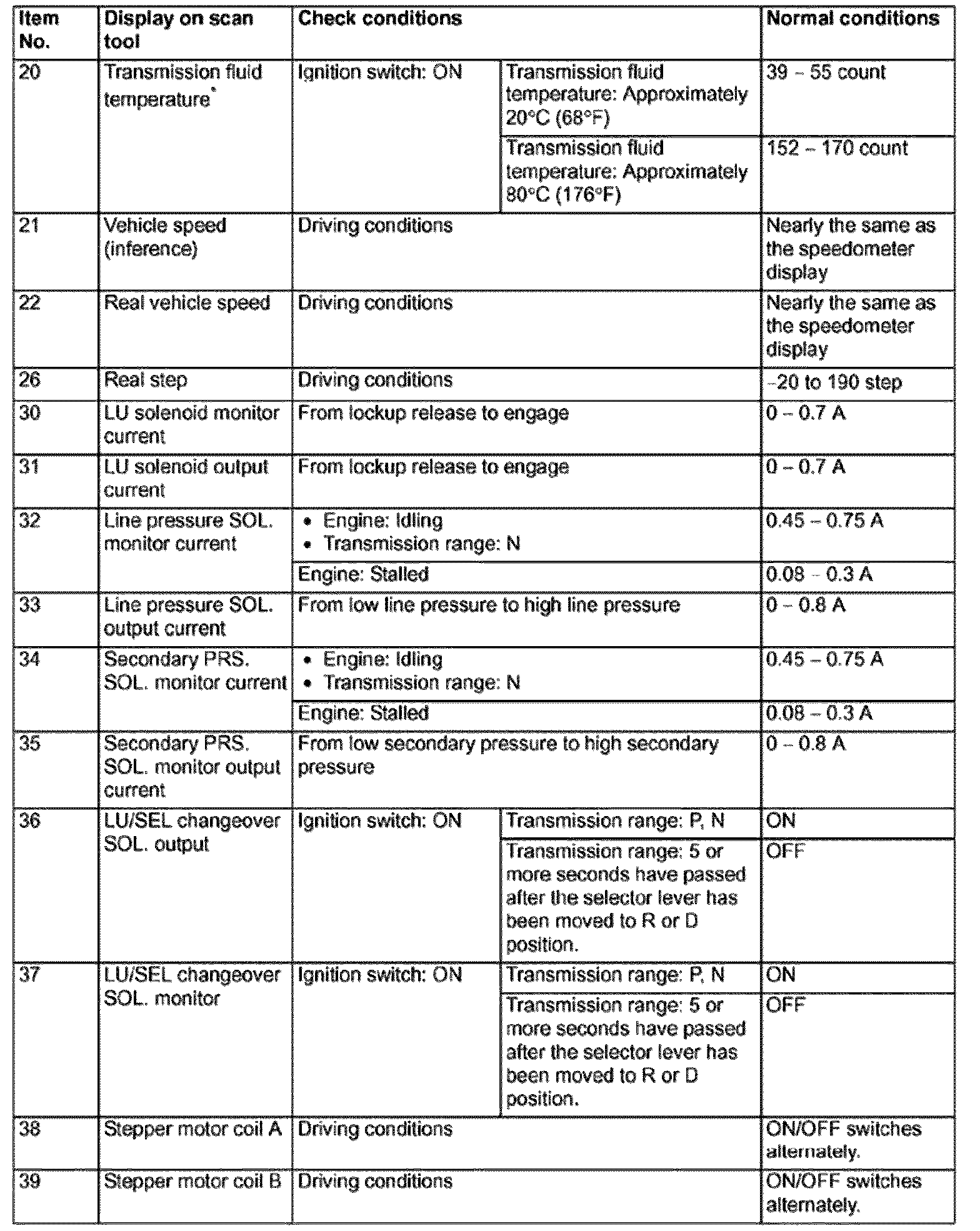

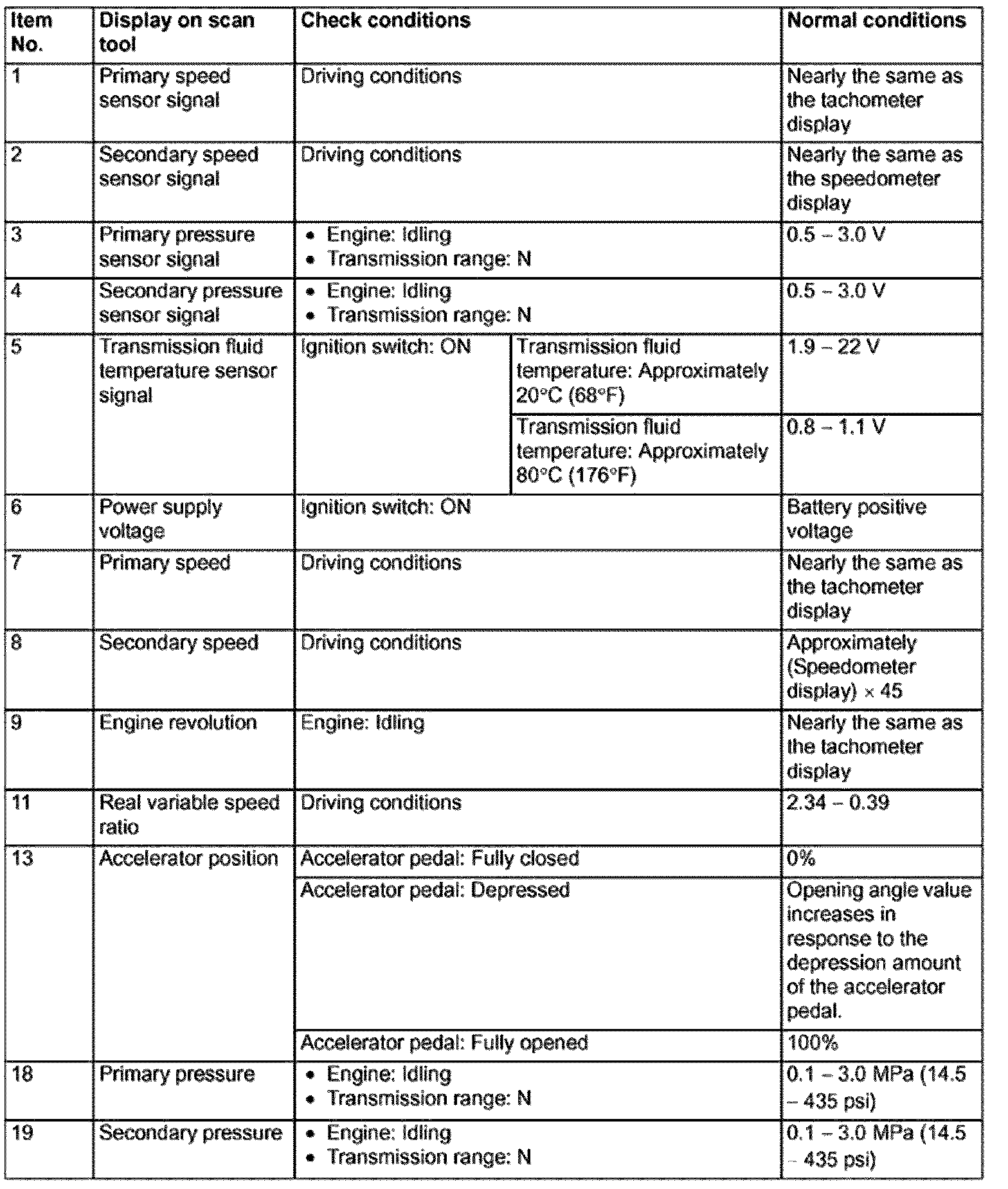

Data List Reference Table (Part 1):

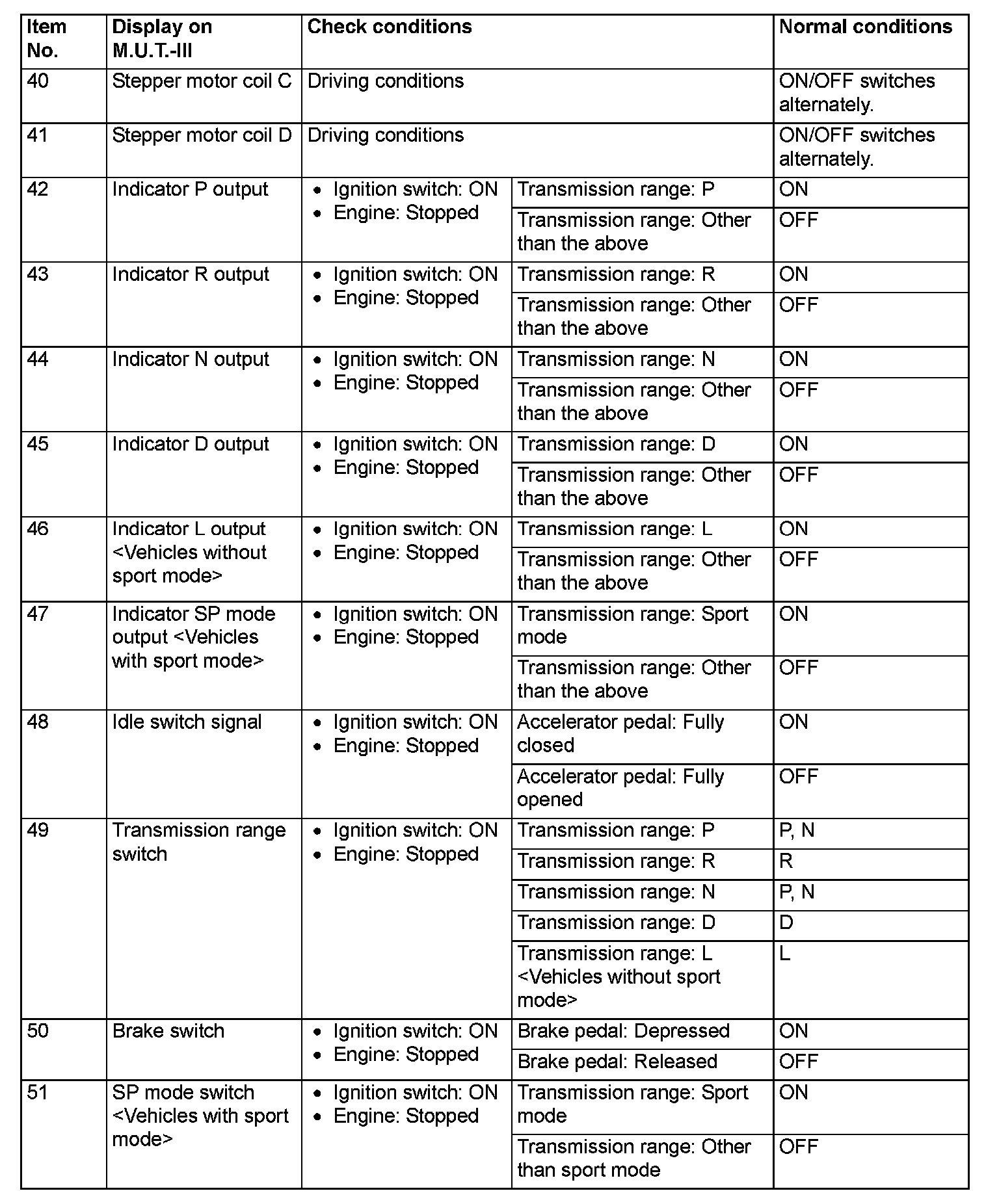

Data List Reference Table (Part 2):
Data List Reference Table (Part 3):

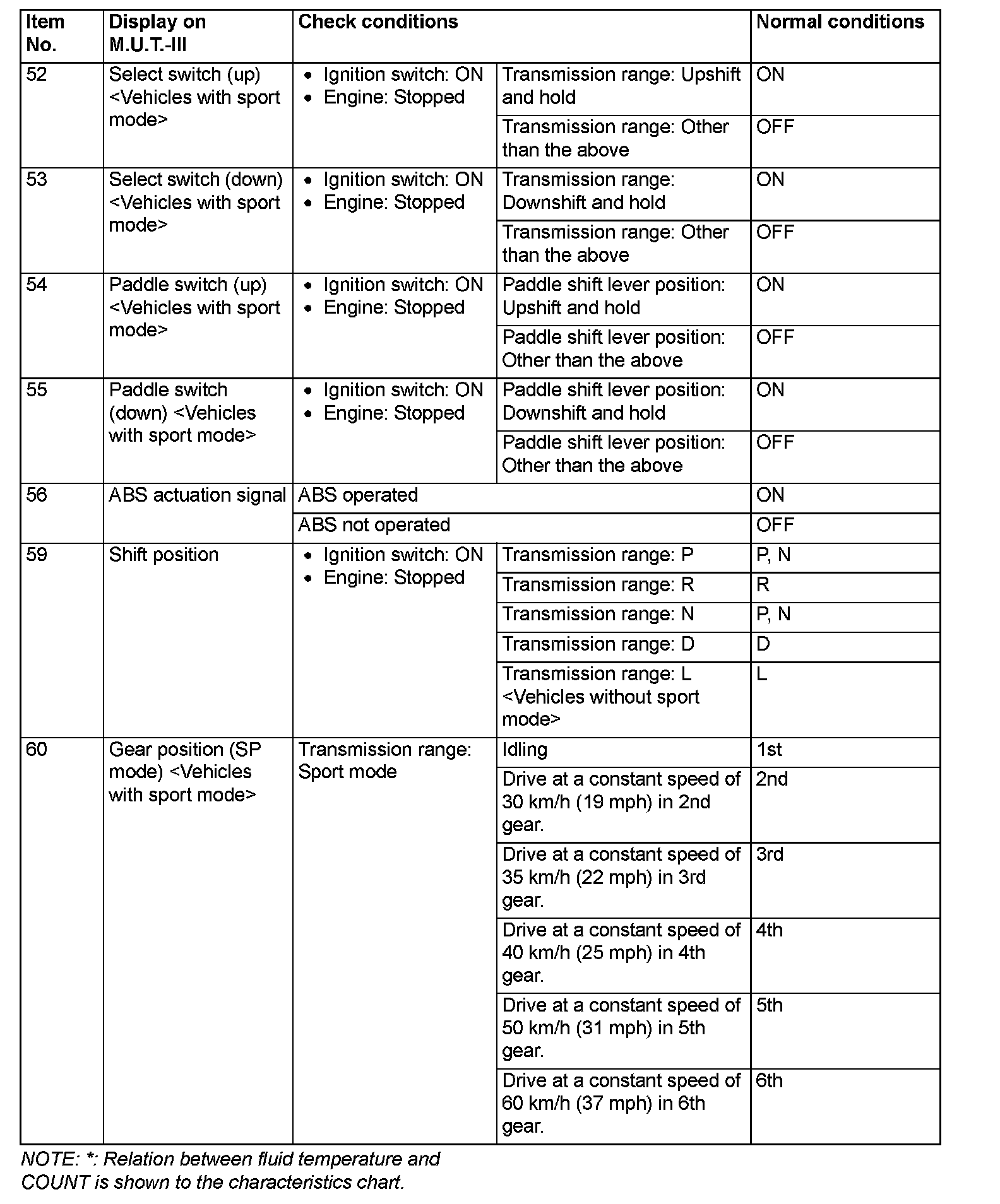

Data List Reference Table (Part 4):
