Fuel Pump Module

NOTE: For installation and removal, refer to Fuel Pump Module Replacement in On-vehicle Service (refer to FUEL PUMP OPERATION CHECK  ).

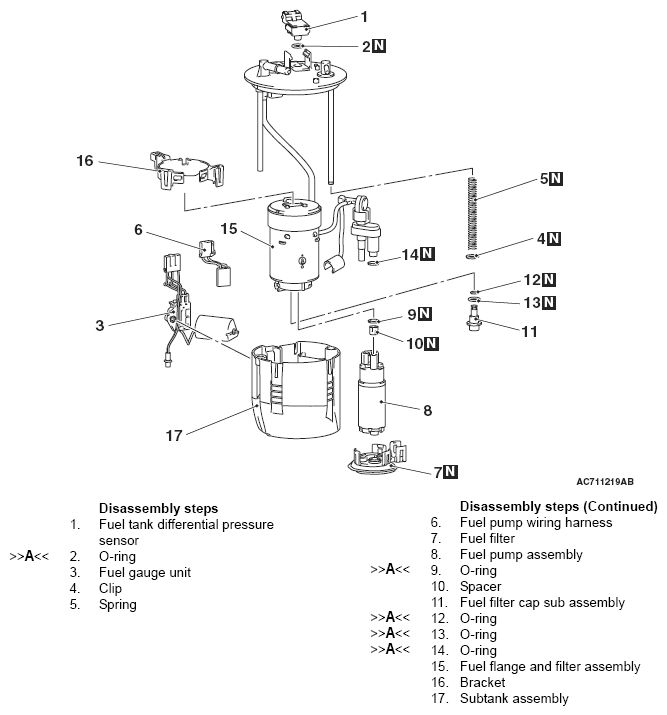

Fig 1: Identifying Fuel Pump Module Components
G05393600Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
