Engine Compartment

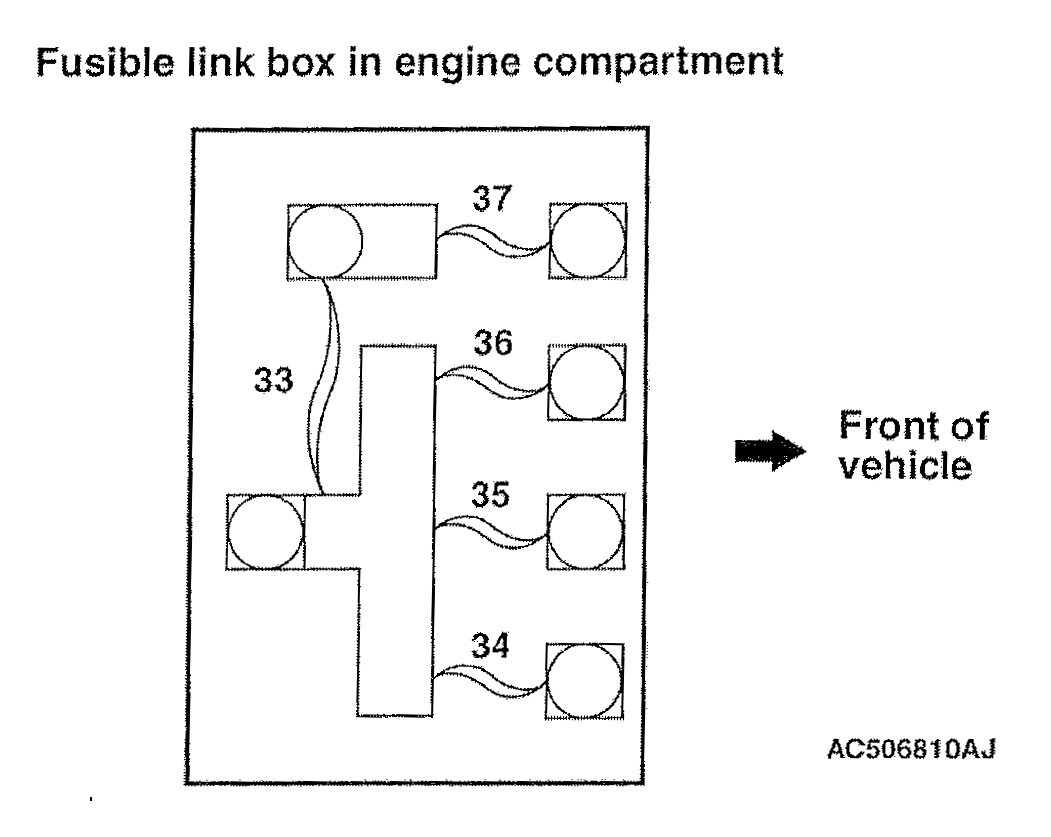

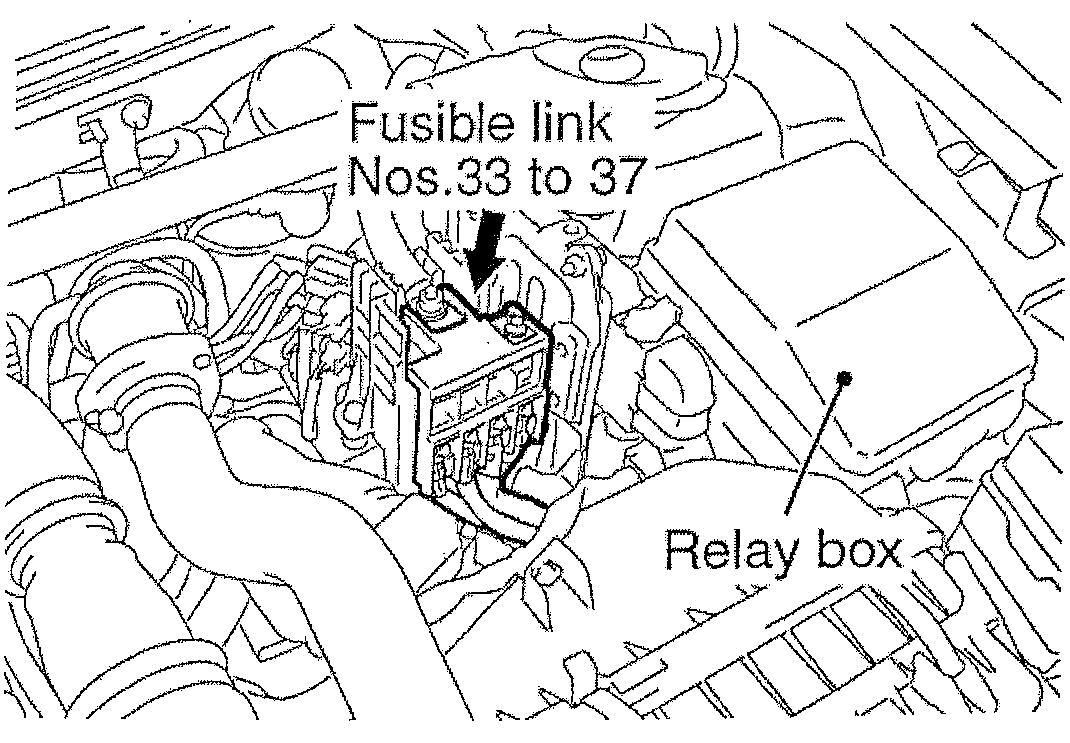

For fuses and fusible link locations, refer to illustrations in COMPONENT LOCATION .

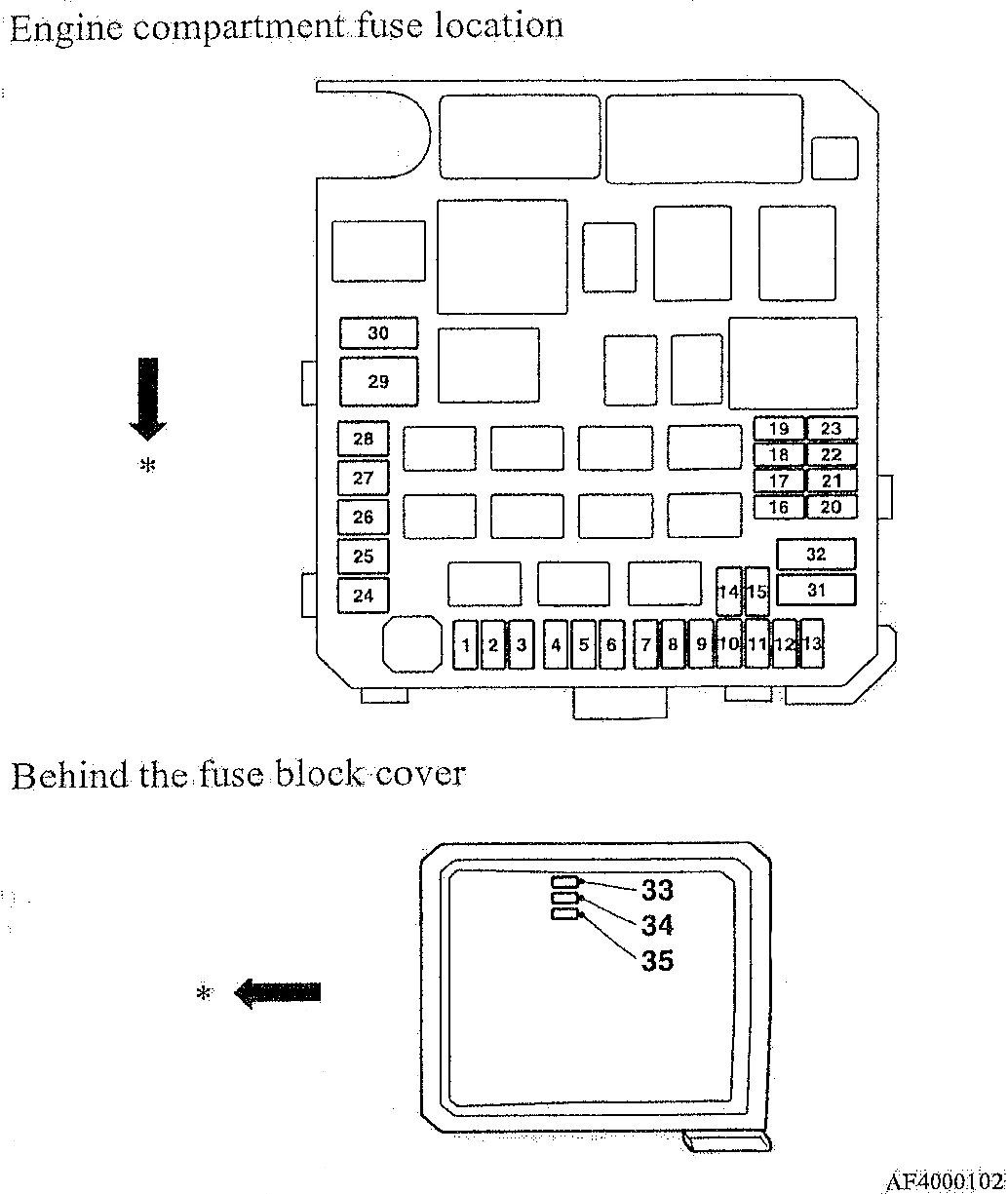

For engine compartment fuse locations, refer to illustrations below.
* Facing to front of engine compartment.
IDENTIFYING FUSES (ENGINE COMPARTMENT)
| No. | POWER SUPPLY CIRCUIT | FUSE TYPE | RATED CAPACITY | HOUSING COLOR | LOAD CIRCUIT |
| 1 | Fusible link No.36 | Fuse | 15A | Blue | Fog light and fog light relay |
| 2 | 7.5A | Brown | Engine control module | ||
| 3 | 20A | Yellow | Shift lever (TC-SST) and transaxle assembly (TC-SST) | ||
| 4 | 10A | Red | Horn (Low, High) and horn relay | ||
| 5 | 7.5A | Browm | Generator | ||
| 6 | - | - | - | ||
| 7 | 10A | Red | A/C compressor assembly and A/C compressor clutch relay | ||
| 8 | 15A | Blue | Engine control module | ||
| 9 | 20A | Yellow | Theft-alarm horn and theft-alarm horn relay | ||
| 10 | - | - | - | ||
| 11 | - | - | - | ||
| 12 | - | - | - | ||
| 13 | 10A | Red | Daytime running light relay and headlight assembly (LH, RH) | ||
| 14 | Headlight relay (High) | Fuse | 10A | Red | Headlight assembly (High: LH) |
| 15 | 10A | Red | Headlight assembly (High: RH) | ||
| 16 | Headlight relay (Low) | Fuse | 20A | Yellow | Headlight assembly LH (Discharge type) |
| 17 | 20A | Yellow | Headlight assembly RH(Discharge type) | ||
| 18 | 10A | Red | Headlight assembly (LH, RH) and headlight leveling switch | ||
| 19 | 10A | Red | Headlight assembly RH (Halogen type) | ||
| 20 | MFI Relay | Fuse | - | - | - |
| 21 | 10A | Red | Ignition coil No.1 to 4 | ||
| 22 | 20A | Yellow | Engine control module, evaporative emission purge solenoid, exhaust oil feeder control valve, heated oxygen sensor (Front, rear), injector Nos.1 to 4, intake oil feeder control valve, mass airflow sensor, throttle actuator control motor relay and turbocharger wastegate solenoid No.1 and 2 | ||
| 23 | 20A | Yellow | Fuel pump module, fuel pump relay 1 and fuel pump circuit resistor | ||
| 24 | Fusible link No.36 | Fusible link | 30A | Pink | Starter |
| 25 | - | - | - | ||
| 26 | 40A | Green | ABS-ECU | ||
| 27 | 30A | Pink | ABS-ECU | ||
| 28 | 30A | Pink | Condenser fan motor, condenser fan relay and fan control relay | ||
| 29 | 40A | Green | Radiator fan motor and radiator fan relay | ||
| 30 | Fuse | 30A | Green | Fuse No.7 to 9 in passenger compartment | |
| 31 | 30A | Green | Audio amplifier | ||
| 32 | MFI relay | - | - | - | |
| 33 | Battery/Generator | Fusible Link | 140A | - | Fusible link No.37/ Fusible link No.34 to 36 |
| 34 | Battery/Fusible link No.33 | 80A | - | ACC relay 3 in ETACS-ECU, fuse No.2, 4, 5, 10, 11, 12, 14, 15, 17, 18, 25 and fusible link No.20 in passenger compartment and ETACS-ECU | |
| 35 | 80A | - | Electric pump | ||
| 36 | 120A | - | Fuse No.1 to 5, 7 to 9, 13 to 23, 30, 31 and fusible link No.24, 26 to 29 in engine compartment, MFI relay and headlight relay (High, Low) | ||
| 37 | Fusible link No.33/ Generator | 80A | - | ACC relay 2 in ETACS-ECU, fusible link No.1 and 21, Fuse No. 3, 6, 13, 16 in passenger compartment, ETACS-ECU and blower relay |
Spare fuses are located on the fuse box cover.
Some fuses may not be installed on your vehicle, depending on the vehicle model or specifications.
The table above shows the main equipment corresponding to each fuse.
The fuse box does not contain spare 7.5A 10A and 15A fuses. If a fuse of one of these capacities blows, replace it temporarily by borrowing a fuse of correct rating from:
- 7.5A: Door mirror heater
- 10A: Dome light (Engine Compartment)
- 15A: Cigarette lighter (Power outlet)
Replace the borrowed fuse as soon as possible.
