Removal And Installation

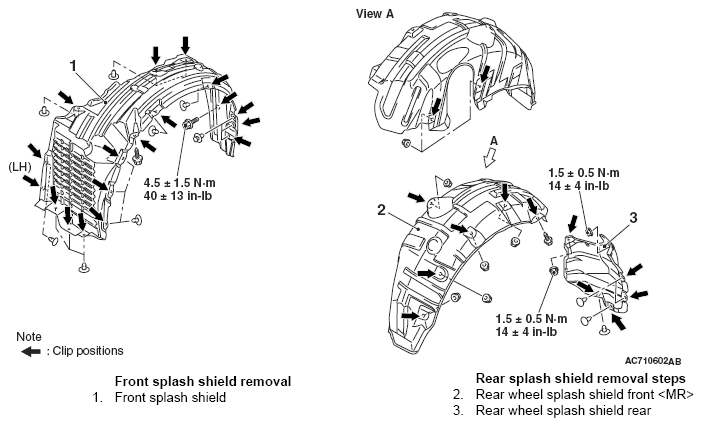

Fig 1: Splash Shield Removal And Installation Replacement Components With Torque Specifications
G05394839Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
