Removal And Installation
Pre-removal and post-installation operation
Air Cleaner Assembly Removal and Installation (Refer to
AIR CLEANER
).

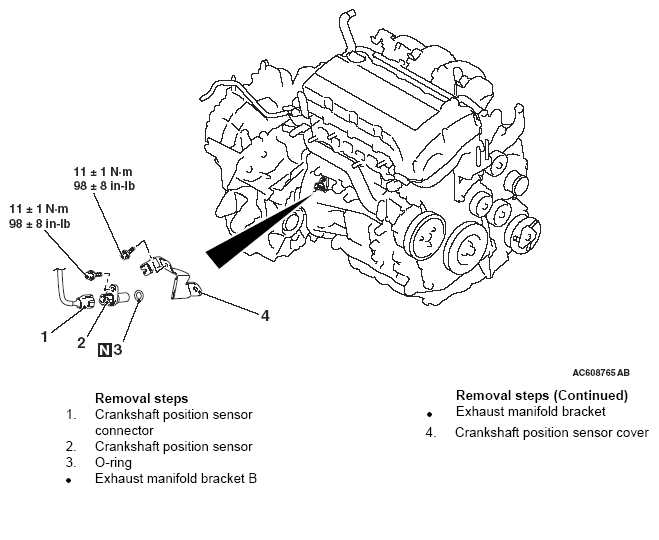

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
