Removal And Installation
GENERATOR ASSEMBLY COMPONENTS REMOVAL STEPS
Pre-removal operation
Engine Room Under Cover Front Removal (Refer to
UNDER COVER
).
Radiator Condenser Tank Removal (Refer to
RADIATOR
).
Post-installation operation
Drive Belt Tension Check (Refer to
DRIVE BELT TENSION CHECK
).
Radiator Condenser Tank Installation (Refer to
RADIATOR
).
Engine Room Under Cover Front Installation (Refer to
UNDER COVER
).

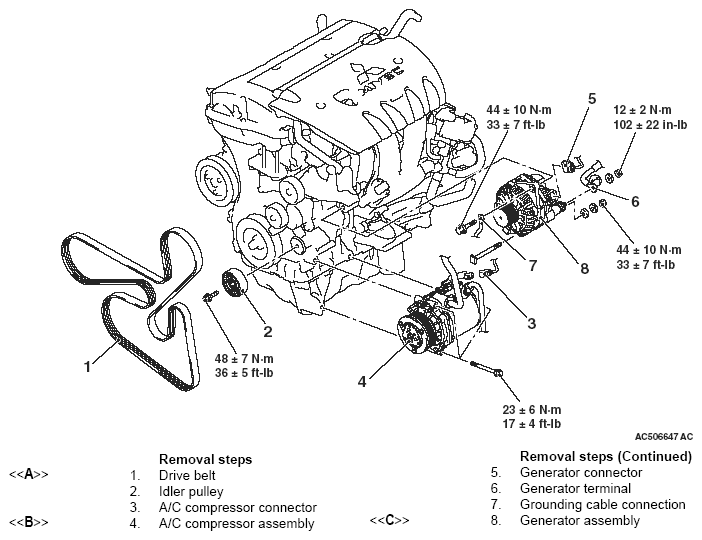

Fig 1: Generator Assembly Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
