Disassembly And Assembly: Notes

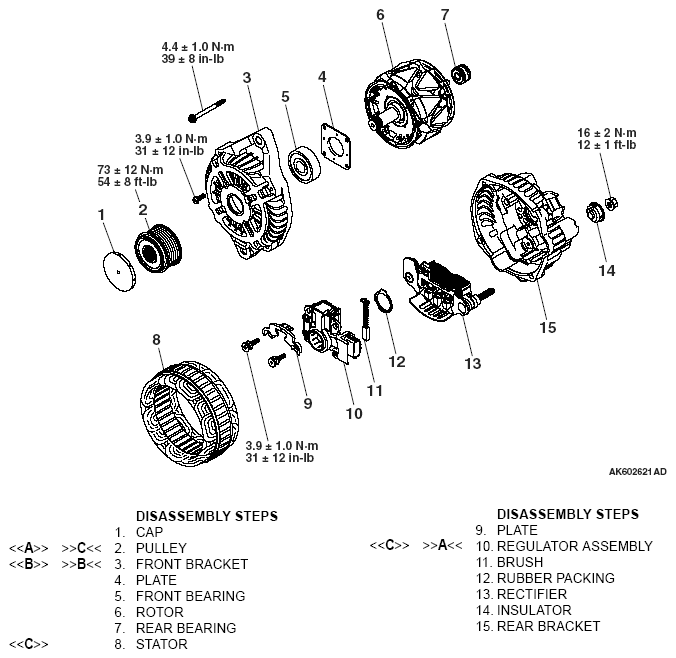

Fig 1: Generator Assembly Disassemble/Assemble Replacement Components With Torque Specifications
G05375404Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
