Removal And Installation: Notes

WARNING: Before removing the front seat assembly, refer to SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING .

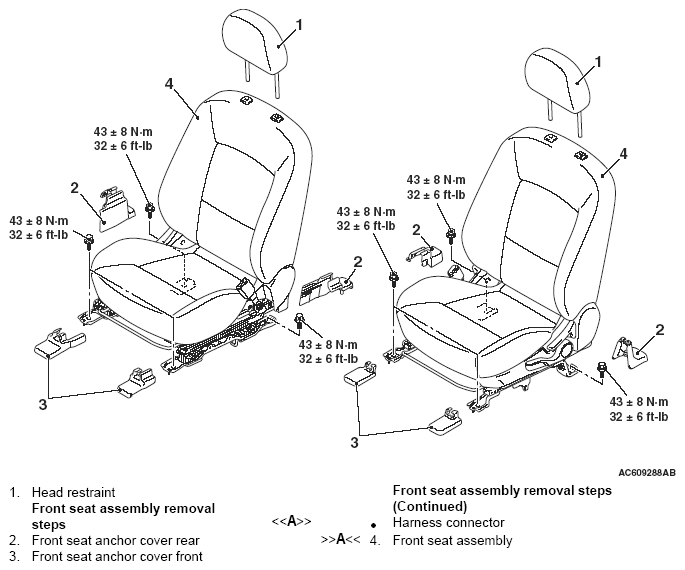

Fig 1: Front Seat Assembly Remove / Install Replacement Components With Torque Specifications
G05384609Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
